Starrett LSS S78XTCZ

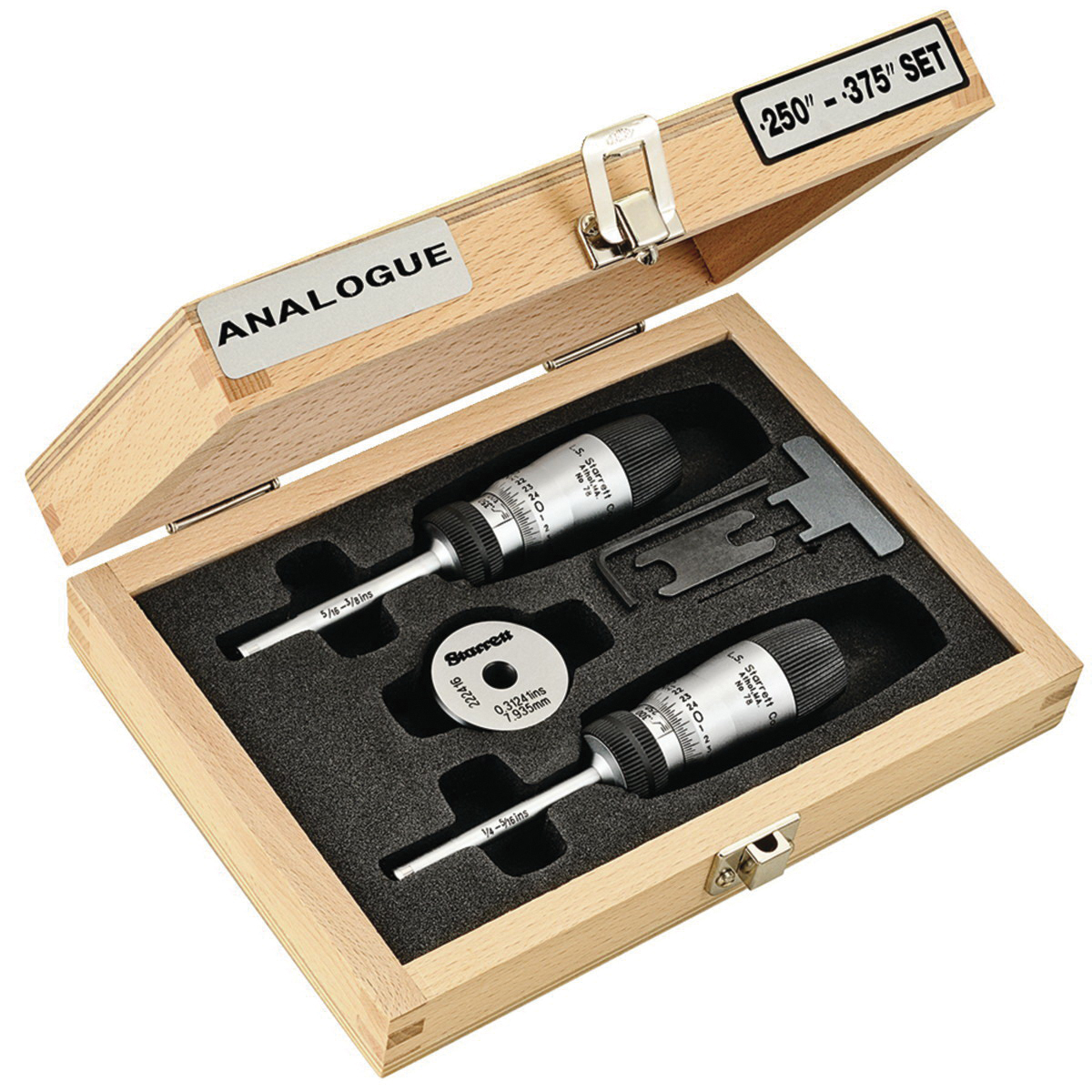

Starrett S78XTCZ 78XT Global Series Mechanical Bore Gage Set, 1/4 to 3/8 in, Graduations: 0.00025 in, 2-1/4 in D Probe, Tungsten Carbide
Invoice description:
Micrometer Sets Extended T Ravel With Cases
Factory Order
Starrett Bore Gage Set, Mechanical, Series: 78XT Global Series, 1/4 to 3/8 in, 0.00015 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 2-1/4 in Probe Depth, Tungsten Carbide
Features
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 2 heads and 1 ring
- 3 point contact
Specifications
Accuracy0.00015 in
Graduations0.00025 in
MaterialTungsten Carbide
Measuring Range1/4 to 3/8 in
Probe Depth2-1/4 in
Resolution0.0002 in
Series78XT Global Series
TypeMechanical
Additional Information
IncludesCase, Contacts, Instructions, Setting Ring and Wrenches
Country of OriginGB
