Starrett LSS S78MXTBZ

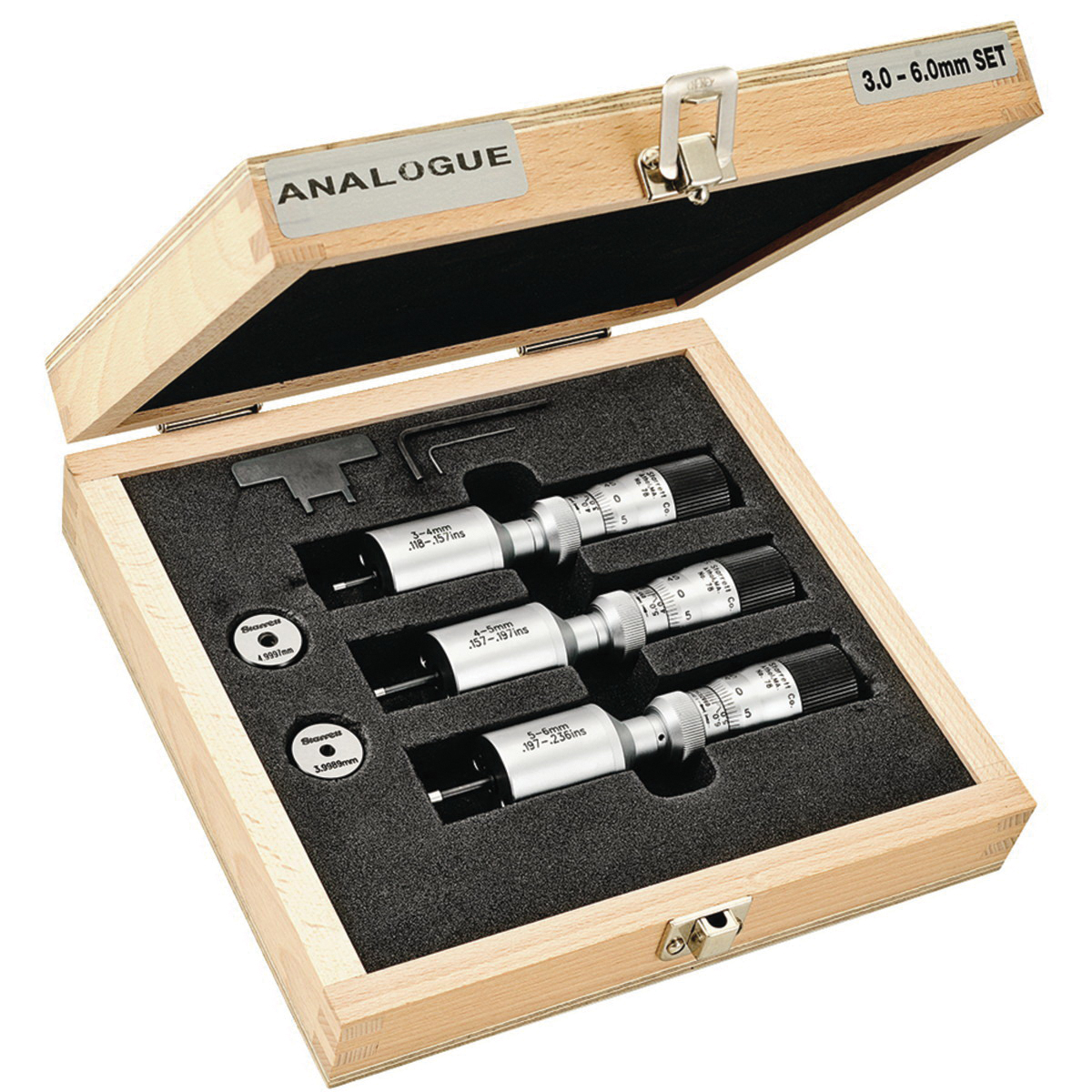

Starrett S78MXTBZ 78MXT Global Series Mechanical Bore Gage Set, 3 to 6 mm, Graduations: 0.0025 mm, 9 to 18 mm D Probe, Tungsten Carbide
Invoice description:
Micrometer Sets Extended T Ravel With Cases
Factory Order
Starrett Bore Gage Set, Mechanical, Series: 78MXT Global Series, 3 to 6 mm, 0.004 mm Accuracy, Graduations: 0.0025 mm, 0.002 mm Resolution, 9 to 18 mm Probe Depth, Tungsten Carbide
Features
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 3 heads and 2 rings
- 2 point contact
Specifications
Accuracy0.004 mm
Graduations0.0025 mm
MaterialTungsten Carbide
Measuring Range3 to 6 mm
Probe Depth9 to 18 mm
Resolution0.002 mm
Series78MXT Global Series
TypeMechanical
Additional Information
IncludesCase, Contacts, Instructions, Setting Ring and Wrenches
Country of OriginGB
