Starrett LSS S167MCHZ

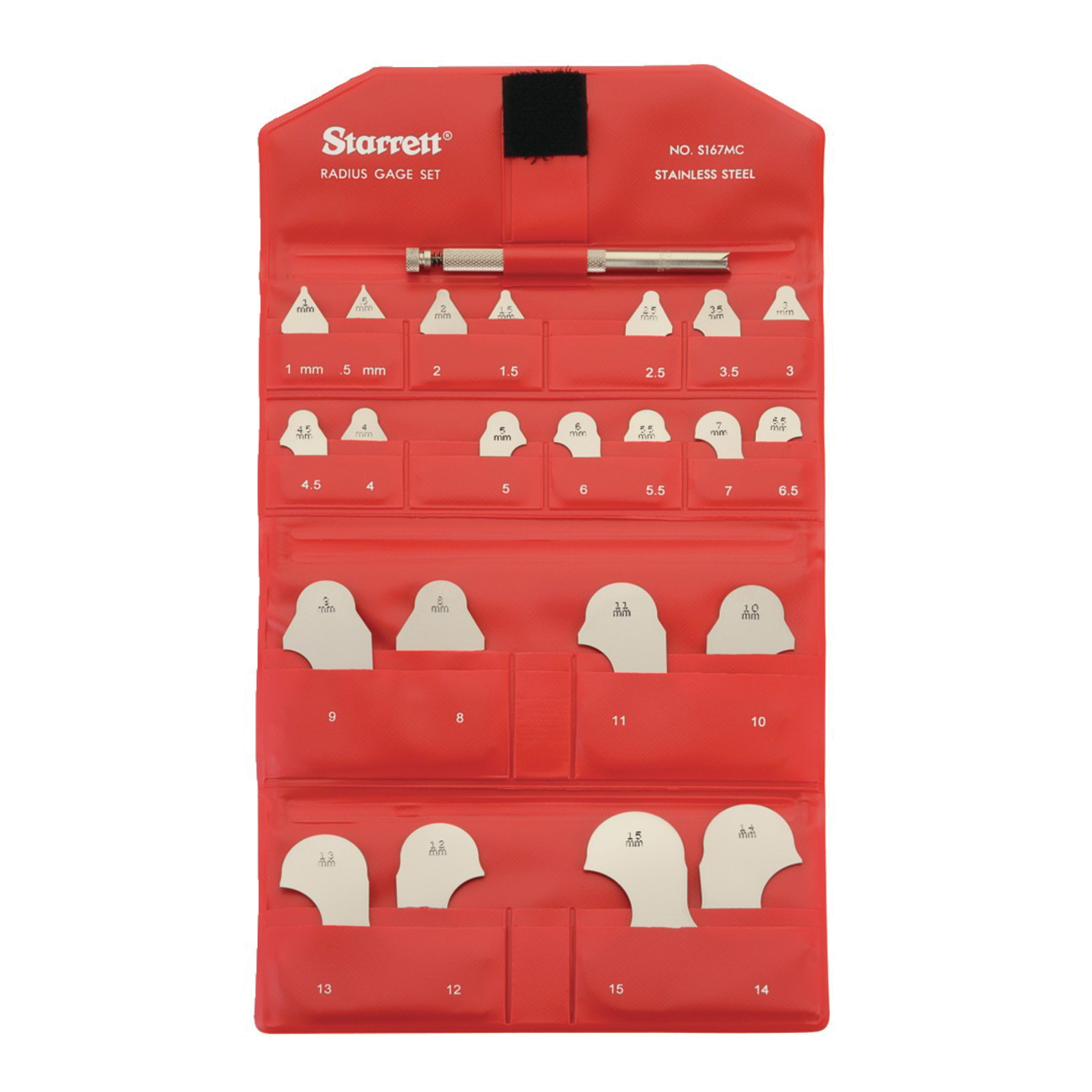

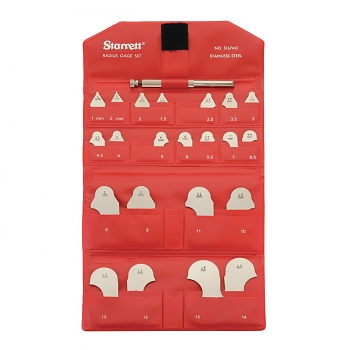

Starrett S167MCHZ Radius Gage Set With Holder, 0.5 to 7 mm, 22 Leaves, Stainless Steel, Satin
Starrett Radius Gage Set, Series: S167M, 0.5 to 7 mm Measuring, Graduations: 0.5 mm, 22 Leaves, Stainless Steel, Satin
Features
- Allows radii or fillets to be checked or laid out easier, faster and more accurately
- Furnished with an attractive case, providing complete protection and easy, instant selection of the right gage size for the job
- Made of satin finish stainless steel, rust and stain resistant
- Each gage is clearly marked with its radius
- Each gage has five different gaging surfaces for both convex and concave radii
- Can be used with Starrett 110 holder which is useful for checking radii in confined or hard to reach locations
- Sets 167MB and S167MAH combined
- Millimeter system of measurement
- 0.5 - 7 mm, 8 - 15 mm measuring range
- 0.5 mm, 1 mm graduations
Specifications
FinishSatin
Graduations0.5 mm
MaterialStainless Steel
Measuring Range0.5 to 7 mm
Number of Leaves22
SeriesS167M
