Starrett LSS 92-9

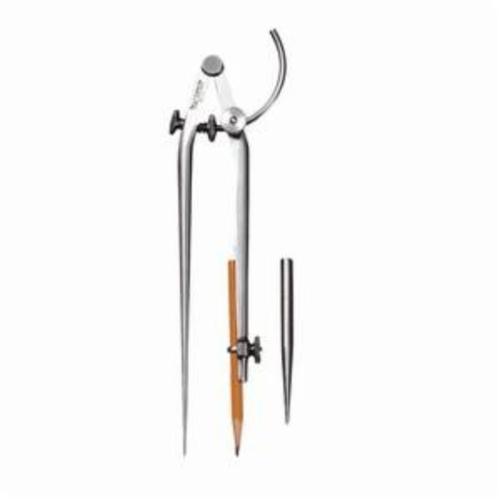

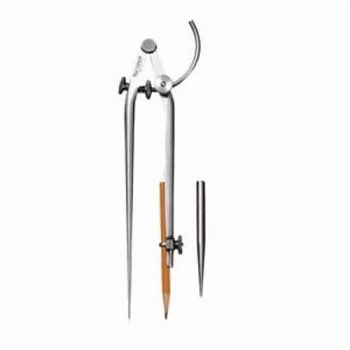

Starrett® Spring Divider, Series: 92 Series, 9 in, Measuring System: Imperial, Quadrant Nut, Round Leg, Forged Steel, Polished, 2-7/8 in H x 5/8 in W

• Features

• These dividers combine rigidity, light weight and easy handling
• The legs are forged steel, well shaped, properly tempered and highly polished
• The adjustable point may be quickly removed and a common pencil inserted in its place
• The sturdy construction of the joint, combined with the quadrant, eliminates side deflection of the legs
• A quadrant adjusting nut permits fine adjustments for close measurements
• A check nut located between the legs locks the legs firmly after the proper adjustment has been made

Specifications

Documents

• Full Engineering Drawing
