Starrett LSS 82CZ
Starrett 82CZ 82 Series Bore Gage, 0.56 to 1.565 in, Graduations: 0.0001 in, 2-1/2 in, 5 in D Probe, Polished Chrome Probe
Invoice description:
Dial Bore Gages Nos.82 8 2m Series Complete S
Factory Order
Starrett Bore Gage, Series: 82 Series, 0.56 to 1.565 in, Graduations: 0.0001 in, 0.0001 in Resolution, 2-1/2 in, 5 in Probe Depth, Polished Chrome Probe, 2-19/64 in Dia x 8-3/64 in H
Features
- Useful for controlling approach to tolerance without removing workpiece from a machine
- The split-ball contact is self-centering, the two-point contact detects hole geometry problems like taper, bell-mouth and out-of- roundness
- Interchangeable probes are hard chrome plated and polished
- All probes come complete with actuating rod
Specifications
Dimensions2-19/64 in Dia x 8-3/64 in H
FinishPolished Chrome Probe
Graduations0.0001 in
Measuring Range0.56 to 1.565 in
Probe Depth2-1/2, 5 in
Resolution0.0001 in
Series82 Series
Additional Information

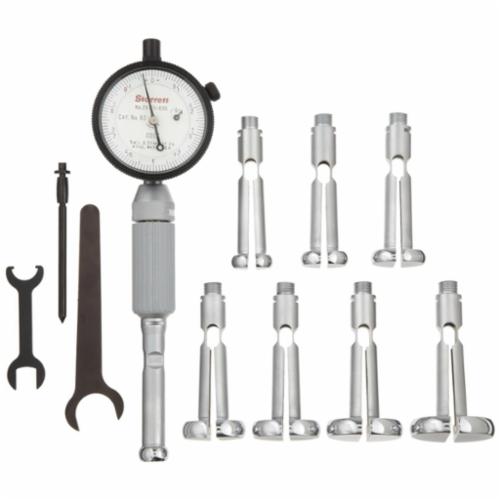

IncludesProtective Case, Dial Indicator, Body and Actuating Rod, (2) Adjusting Wrenches and (8) Probes
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
