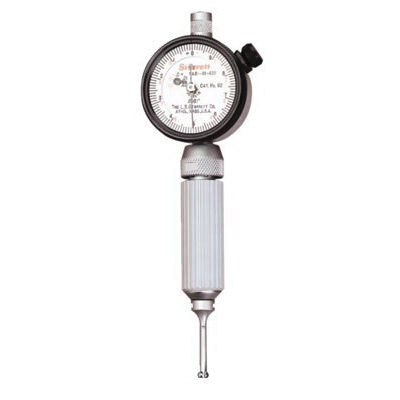

Starrett LSS 82AZ
Starrett 82AZ 82 Series Bore Gage, 0.107 to 0.266 in, Graduations: 0.0001 in, 13/16 in D Probe, Polished Chrome Probe
Invoice description:
Dial Bore Gages Nos.82 8 2m Series Complete S
Factory Order
Starrett Bore Gage, Series: 82 Series, 0.107 to 0.266 in, Graduations: 0.0001 in, 0.0001 in Resolution, 13/16 in Probe Depth, Polished Chrome Probe, 4-23/32 in H x 1-27/32 in W x 27/32 in Dia
Features
- Useful for controlling approach to tolerance without removing workpiece from a machine
- The split-ball contact is self-centering, the two-point contact detects hole geometry problems like taper, bell-mouth and out-of- roundness
- Interchangeable probes are hard chrome plated and polished
- All probes come complete with actuating rod
Specifications
Dimensions4-23/32 in H x 1-27/32 in W x 27/32 in Dia
FinishPolished Chrome Probe
Graduations0.0001 in
Measuring Range0.107 to 0.266 in
Probe Depth13/16 in
Resolution0.0001 in
Series82 Series
Additional Information
IncludesProtective Case, Dial Indicator, Body and Actuating Rod, (2) Adjusting Wrenches and (5) Probes
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
