Starrett LSS 79B-4

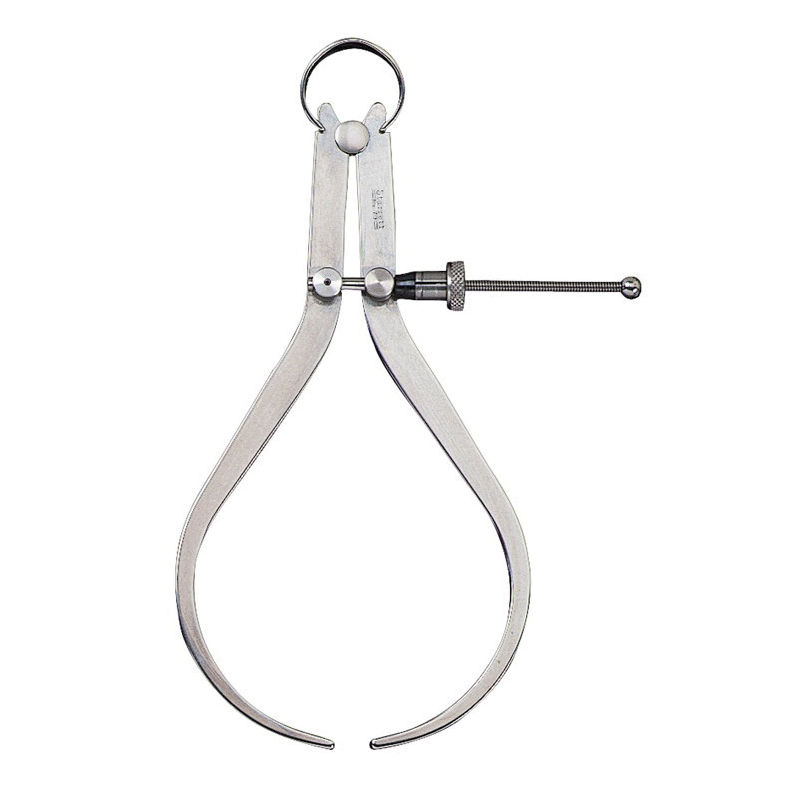

Starrett 79B-4 79 Series Yankee Spring Outside Caliper, 4 in, High Grade Steel
Invoice description:
Yankee Spring-type Calip Er S (outside) No.79
Factory Order
Starrett Outside Caliper, Yankee Spring, Series: 79 Series, 4 in, Measuring System: Metric/SAE, Quick Spring Nut, Flat Leg, High Grade Steel, 4-11/16 in H x 1/2 in THK
Features
- Made from a high grade material and well-finished
- The bow spring, although flexible, is exceedingly strong to assure reliability
- Quick-adjusting automatic-closing spring nut is designed for making fast, positive adjustments
- The legs are made of flat stock and are very durable
- The threads of the nut firmly engage the screw at the slightest pressure from the leg
- When the pressure is withdrawn, the nut automatically releases itself, sliding freely over the screw
- Fulcrum stud is hardened and has a smooth bearing surface
Specifications
Dimensions4-11/16 in H x 1/2 in THK
Leg TypeFlat
MaterialHigh Grade Steel
Measuring Range4 in
Measuring SystemMetric/SAE
Nut TypeQuick Spring
Series79 Series
TypeYankee Spring
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
