Starrett LSS 78XTZ-9

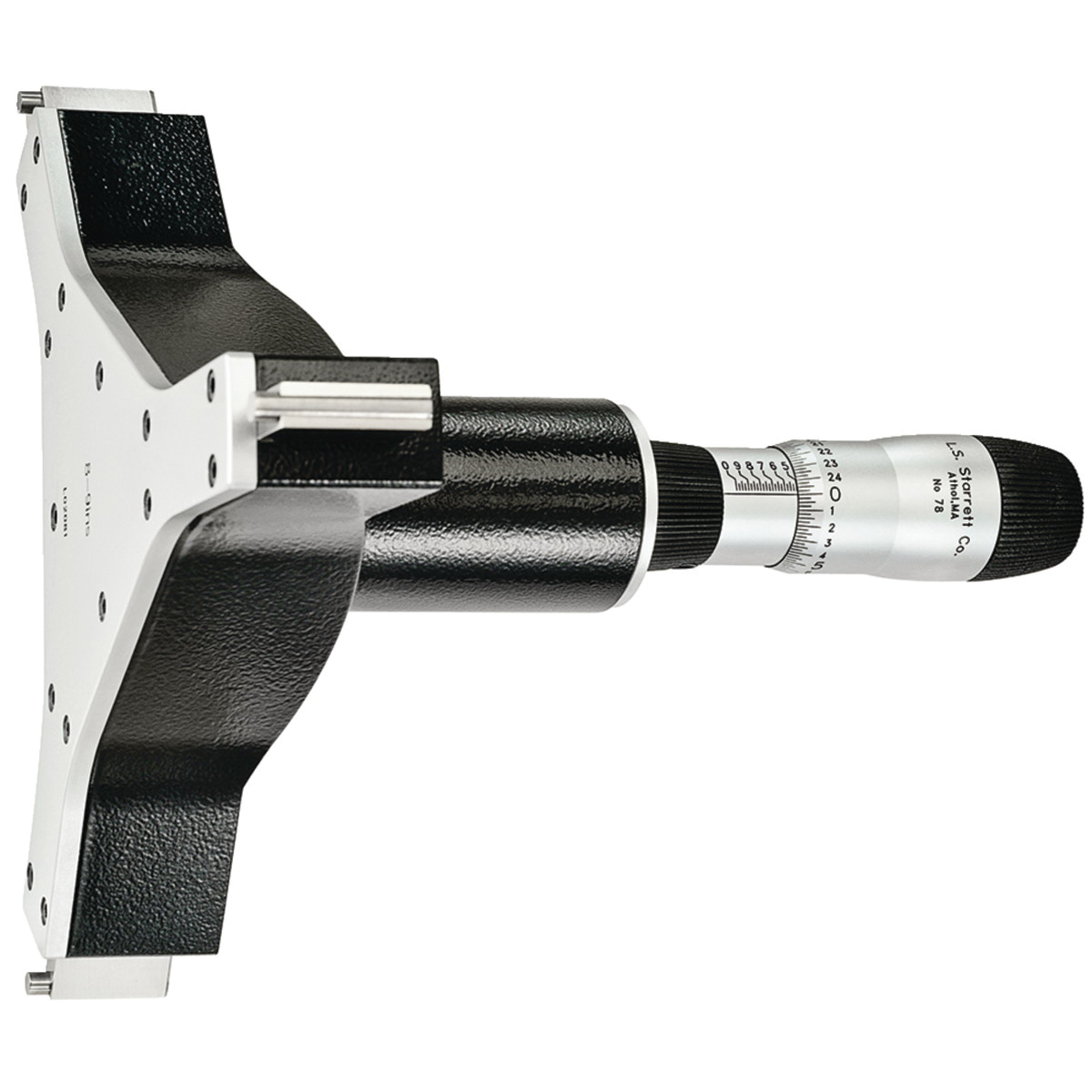

Starrett 78XTZ-9 78XT Global Series Mechanical Bore Gage, 8 to 9 in, Graduations: 0.00025 in, 4-1/2 in D Probe, Tungsten Carbide
Invoice description:
Inside Micrometers Exten De D Travel With Set
Factory Order
Starrett Bore Gage, Mechanical, Series: 78XT Global Series, 8 to 9 in, 0.0003 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 4-1/2 in Probe Depth, Tungsten Carbide
Features
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 9 in setting ring diameter
- 3-point contact
Specifications
Accuracy0.0003 in
Graduations0.00025 in
MaterialTungsten Carbide
Measuring Range8 to 9 in
Probe Depth4-1/2 in
Resolution0.0002 in
Series78XT Global Series
TypeMechanical
Additional Information
IncludesCase, Contacts, Instructions, Setting Ring and Wrenches
Country of OriginGB
