Starrett LSS 78XTZ-314

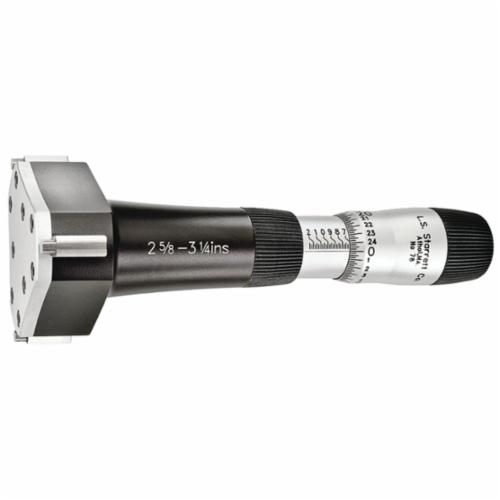

Starrett 78XTZ-314 78XT Global Series Mechanical Bore Gage, 2-5/8 to 3-1/4 in, Graduations: 0.00025 in, 3-1/16 in D Probe, Tungsten Carbide
Invoice description:
Inside Micrometers Exten De D Travel With Set
Factory Order
Starrett Bore Gage, Mechanical, Series: 78XT Global Series, 2-5/8 to 3-1/4 in, 0.0002 in Accuracy, Graduations: 0.00025 in, 0.0002 in Resolution, 3-1/16 in Probe Depth, Tungsten Carbide
Features
- Depth stop/collar also available for 0.080 in to .250 in (1-6mm) range
- Each micrometer bore gage is furnished in a case, complete with setting ring, contacts, wrenches, and instructions
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 2.625 in setting ring diameter
- 3-point contact
Specifications
Accuracy0.0002 in
Graduations0.00025 in
MaterialTungsten Carbide
Measuring Range2-5/8 to 3-1/4 in
Probe Depth3-1/16 in
Resolution0.0002 in
Series78XT Global Series
TypeMechanical
Additional Information
IncludesCase, Contacts, Instructions, Setting Ring and Wrenches
Country of OriginGB
