Starrett LSS 78MXTZ-8

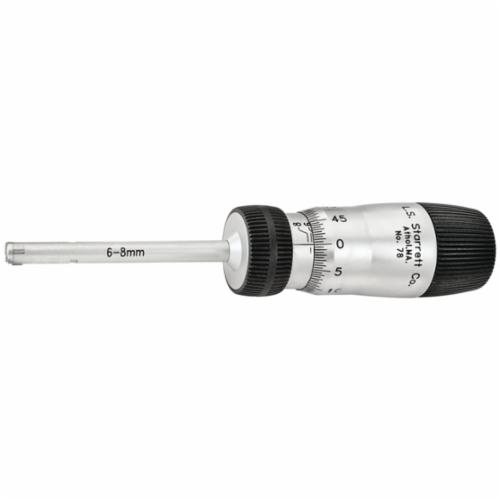

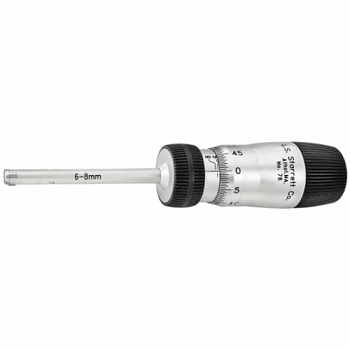

Starrett 78MXTZ-8 78MXT Global Series Mechanical Bore Gage, 6 to 8 mm, Graduations: 0.005 mm, 58 mm D Probe, Tungsten Carbide
Invoice description:
Inside Micrometers Exten De D Travel With Set
Factory Order
Starrett Bore Gage, Mechanical, Series: 78MXT Global Series, 6 to 8 mm, 0.004 mm Accuracy, Graduations: 0.005 mm, 0.0002 in Resolution, 58 mm Probe Depth, Tungsten Carbide
Features
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 8 mm setting ring diameter
- 3-point contact
Specifications
Accuracy0.004 mm
Graduations0.005 mm
MaterialTungsten Carbide
Measuring Range6 to 8 mm
Probe Depth58 mm
Resolution0.0002 in
Series78MXT Global Series
TypeMechanical
Additional Information
IncludesCase, Contacts, Instructions, Setting Ring and Wrenches
Country of OriginGB
