Starrett LSS 78MXTZ-6

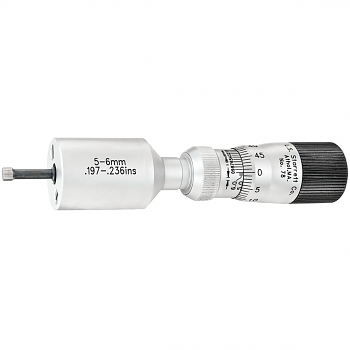

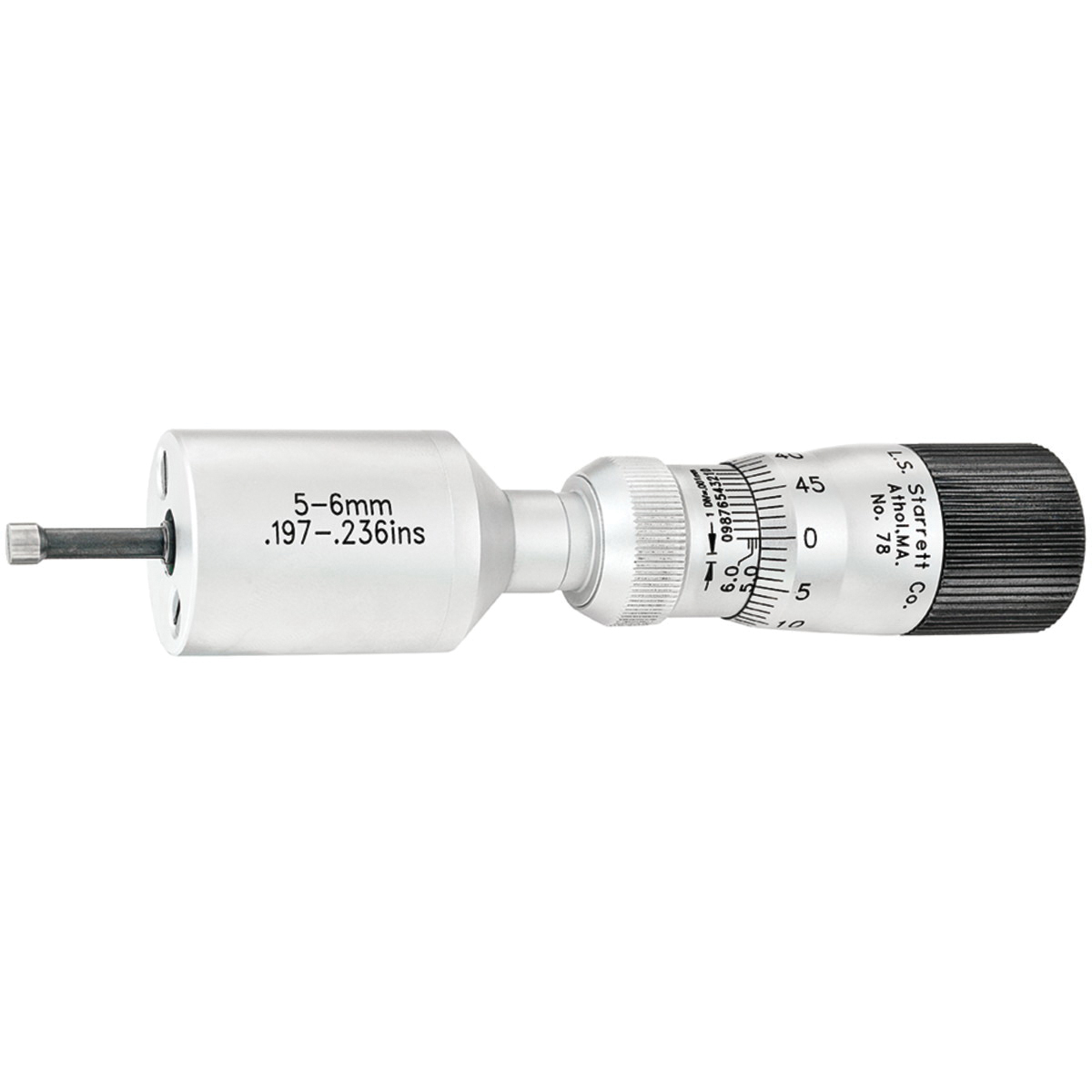

Starrett 78MXTZ-6 78MXT Global Series Mechanical Bore Gage, 5 to 6 mm, Graduations: 0.0025 mm, 18 mm D Probe, Tungsten Carbide
Invoice description:
Inside Micrometers Exten De D Travel With Set
Factory Order
Starrett Bore Gage, Mechanical, Series: 78MXT Global Series, 5 to 6 mm, 0.004 mm Accuracy, Graduations: 0.0025 mm, 0.0001 in Resolution, 18 mm Probe Depth, Tungsten Carbide
Features
- Depth stop/collar also available for 0.080 in to .250 in (1-6mm) range
- Each micrometer bore gage is furnished in a case, complete with setting ring, contacts, wrenches, and instructions
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 5 mm setting ring diameter
- 2-point contact
Specifications
Accuracy0.004 mm
Graduations0.0025 mm
MaterialTungsten Carbide
Measuring Range5 to 6 mm
Probe Depth18 mm
Resolution0.0001 in
Series78MXT Global Series
TypeMechanical
Additional Information
IncludesCase, Contacts, Instructions, Setting Ring and Wrenches
Country of OriginGB
