Starrett LSS 78MXTZ-20

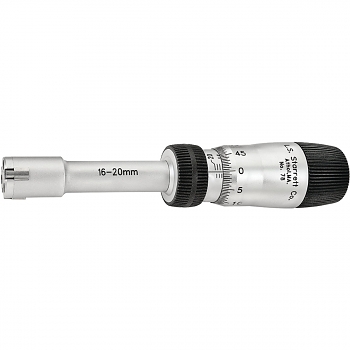

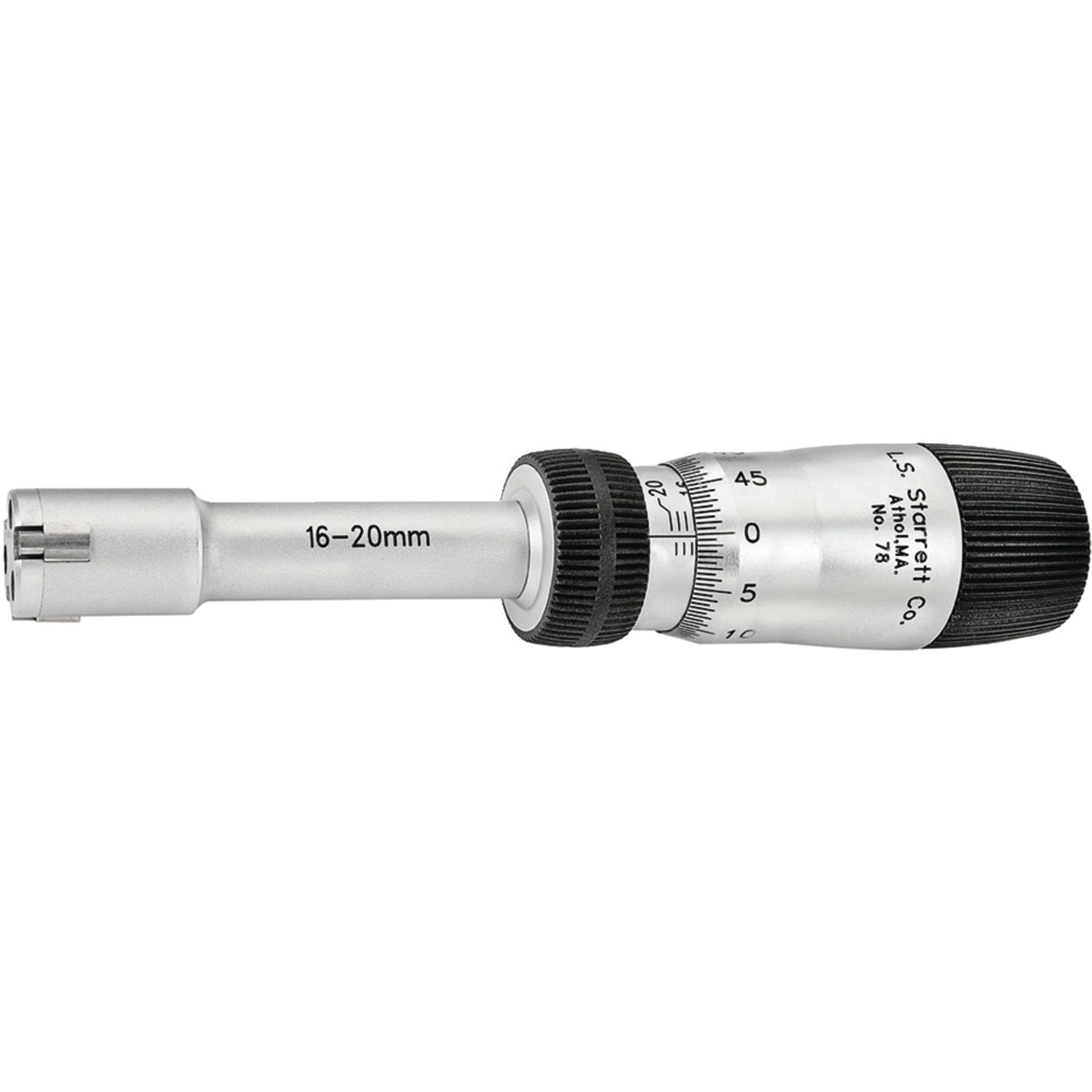

Starrett 78MXTZ-20 78MXT Global Series Mechanical Bore Gage, 16 to 20 mm, Graduations: 0.005 mm, 62 mm D Probe, Tungsten Carbide
Invoice description:
Inside Micrometers Exten De D Travel With Set
Factory Order
Starrett Bore Gage, Mechanical, Series: 78MXT Global Series, 16 to 20 mm, 0.004 mm Accuracy, Graduations: 0.005 mm, 0.0002 in Resolution, 62 mm Probe Depth, Tungsten Carbide
Features
- Depth stop/collar also available for 0.080 in to .250 in (1-6mm) range
- Each micrometer bore gage is furnished in a case, complete with setting ring, contacts, wrenches, and instructions
- Wide measurement range without changing anvils
- Tungsten carbide measuring faces on all 3-point heads above 1/2 in (12.5 mm)
- Ratchet stop ensures consistent measurements
- Self-centering contacts for true readings
- Blind bore measuring capability above 1/2 in (12.5 mm) diameter
- Extensions available up to 6 in (150mm) for deep hole measuring
- 20 mm setting ring diameter
- 3-point contact
Specifications
Accuracy0.004 mm
Graduations0.005 mm
MaterialTungsten Carbide
Measuring Range16 to 20 mm
Probe Depth62 mm
Resolution0.0002 in
Series78MXT Global Series
TypeMechanical
Additional Information
IncludesCase, Contacts, Instructions, Setting Ring and Wrenches
Country of OriginGB
