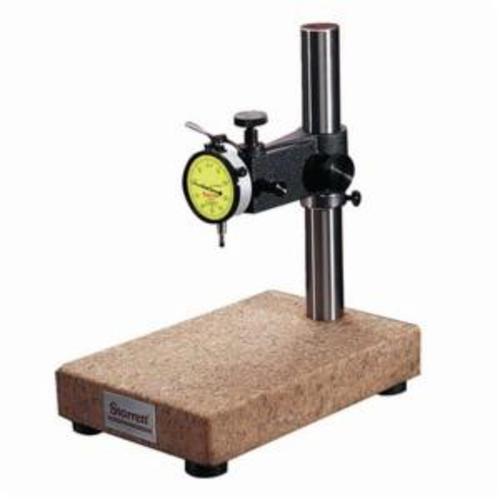

Starrett LSS 653GMJ
Starrett 653GMJ Dial Comparator With 655-181J Indicator and Granite Base, 12 in L x 8 in W x 2 in THK Base, 1-31/64 in Dia x 11-1/2 in L Rod
Invoice description:
Dial Comparator Stands N O. 653 653m Series C
Factory Order
Starrett Dial Comparator, Series: 653G, 12 in L x 8 in W x 2 in THK Base, 1-31/64 in Rod Dia, 11-1/2 in Rod Length, 1-1/2 in Upright Post Dia, Crystal Pink
Features
- Ruggedly built for in-process and final inspection work
- Can be adjusted vertically and locked in any position
- A sliding ring with locking screw below the beam permits swinging the indicator to either side
- Ring also acts as a safety device, preventing the beam from accidentally dropping
- Includes a fine adjustment on the beam for final indicator setting
- Comparator with granite base
- 0.01 mm graduation
- 0 - 50 dial reading
- 2.5 mm range
- 9-1/4 in of maximum vertical capacity
Specifications
Base Size12 in L x 8 in W x 2 in THK
ColorCrystal Pink
Rod Diameter1-31/64 in
Rod Length11-1/2 in
Series653G
Upright Post Diameter1-1/2 in
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
