Starrett LSS 456MAZ

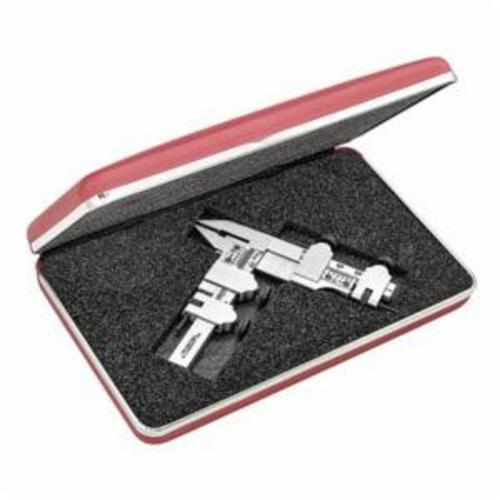

Starrett 456MAZ Gear Tooth Vernier Caliper With Case, 0 to 25 mm Measuring, Graduations 0.2 mm
Invoice description:
Gear Tooth Vernier Calip Er S No. 456 456m Se
Factory Order
Starrett Gear Tooth Vernier Caliper, Series: 456M, 0 to 25 mm Measuring, +/-0.013/300 mm Accuracy, Graduations: 0.2 mm, Measuring System: Metric, Adjustable Screw Nut
Features
- Adjusted independently by screws on the graduated bars
- Thickness of a tooth at the pitch line is measured by an adjustable jaw after the addendum is set by the adjustable tongue
- Caliper is designed to measure in 0.001 in or 0.02 mm the thickness of gear teeth at the pitch line using the distance from the top of a tooth to the chord
- 1-1/4 - 12 mm module
Specifications
ApplicationFor measuring hobs, form and thread tools
Accuracy+/-0.013/300 mm
Graduations0.2 mm
Measuring Range0 to 25 mm
Measuring SystemMetric
Nut TypeAdjustable Screw
Series456M
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
