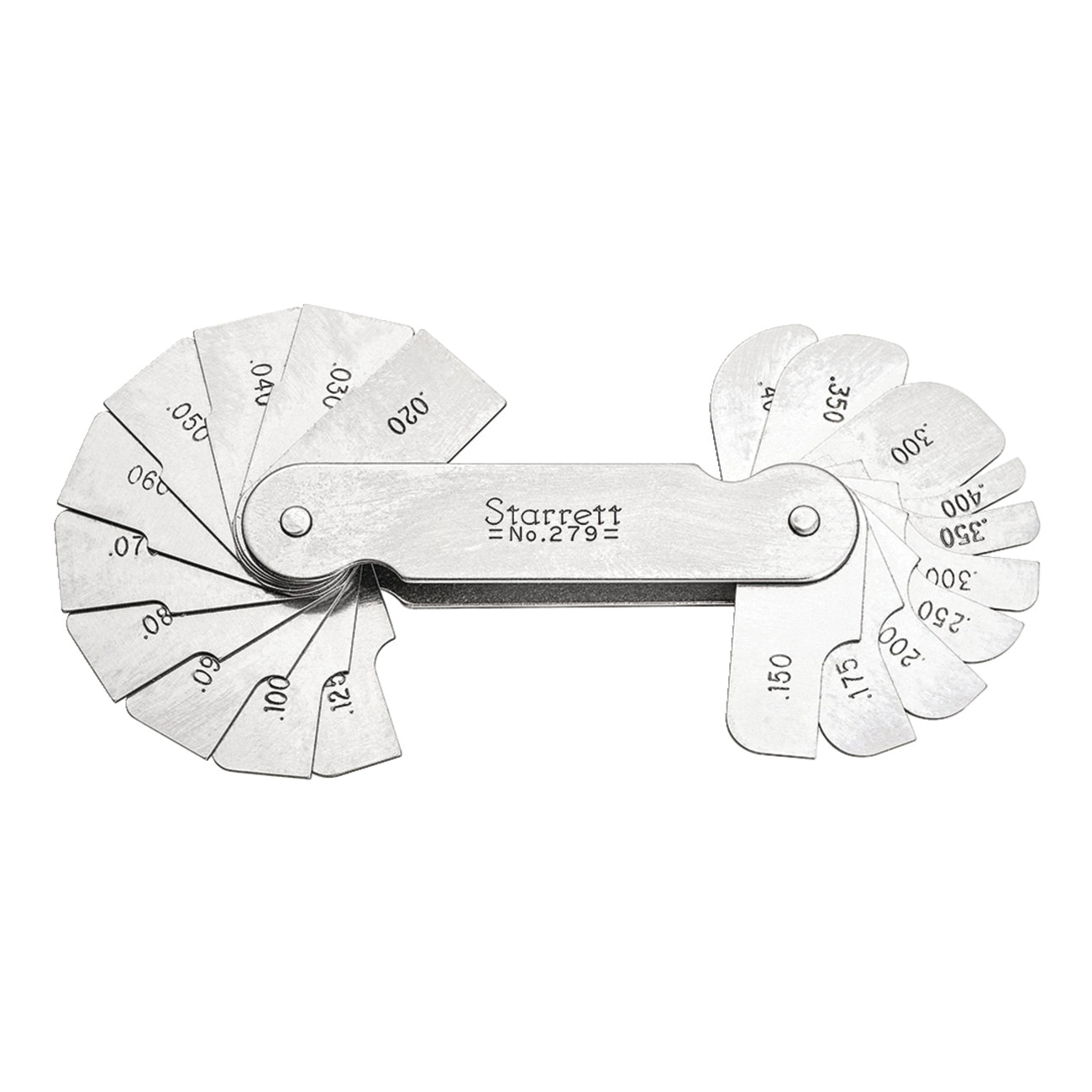

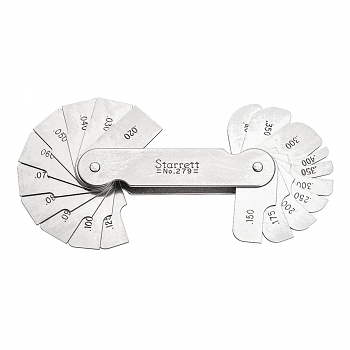

Starrett 279 Fillet/Radius Gage, 0.02 to 0.4 in, 20 Leaves
Invoice description:
81 283-284 286-287 Serie S #name? Rds No. 27
Factory Order
Starrett Fillet/Radius Gage, 0.02 to 0.4 in Measuring, 20 Leaves, 4-11/64 in L x 25/64 in W x 2-1/16 in H Dimensions
Features
- Provides twenty leaves with radii from 0.020 to 0.400 in inclusive
- Includes nine leaves have concave and convex radii from 0.02 to 0.1 in inclusive by 0.01 in
- Includes four leaves with concave and convex radii from 0.125 to 0.2 in inclusive by 0.025 in
- One leaf with concave and convex radii of 0.25 in from 0.3 to 0.4 inclusive by 0.05 in and three leaves with convex radii from 0.3 to 0.4 by 0.05 in
- Includes three leaves with concave radii only
- Leaves are specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders
- Each leaf is stamped with the radius size and has an eccentric mounting for clearance between the leaf and the case when the gage is opened
- Inch system of measurement
Specifications
ApplicationFor measuring concave or convex surfaces in woodworking, metalworking, machining, layout and pattern-making applications
Dimensions4-11/64 in L x 25/64 in W x 2-1/16 in H
Measuring Range0.02 to 0.4 in
Number of Leaves20
Additional Information
Includes0.02 in, 0.03 in, 0.04 in, 0.05 in, 0.06 in, 0.07 in, 0.08 in, 0.09 in, 0.1 in, 0.125in, 0.15 in, 0.175 in, 0.2 in, 0.25 in, 0.3 in, 0.35 in and 0.4 in Radius Gages
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
