Starrett LSS 272MB

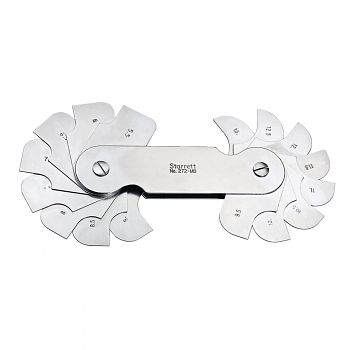

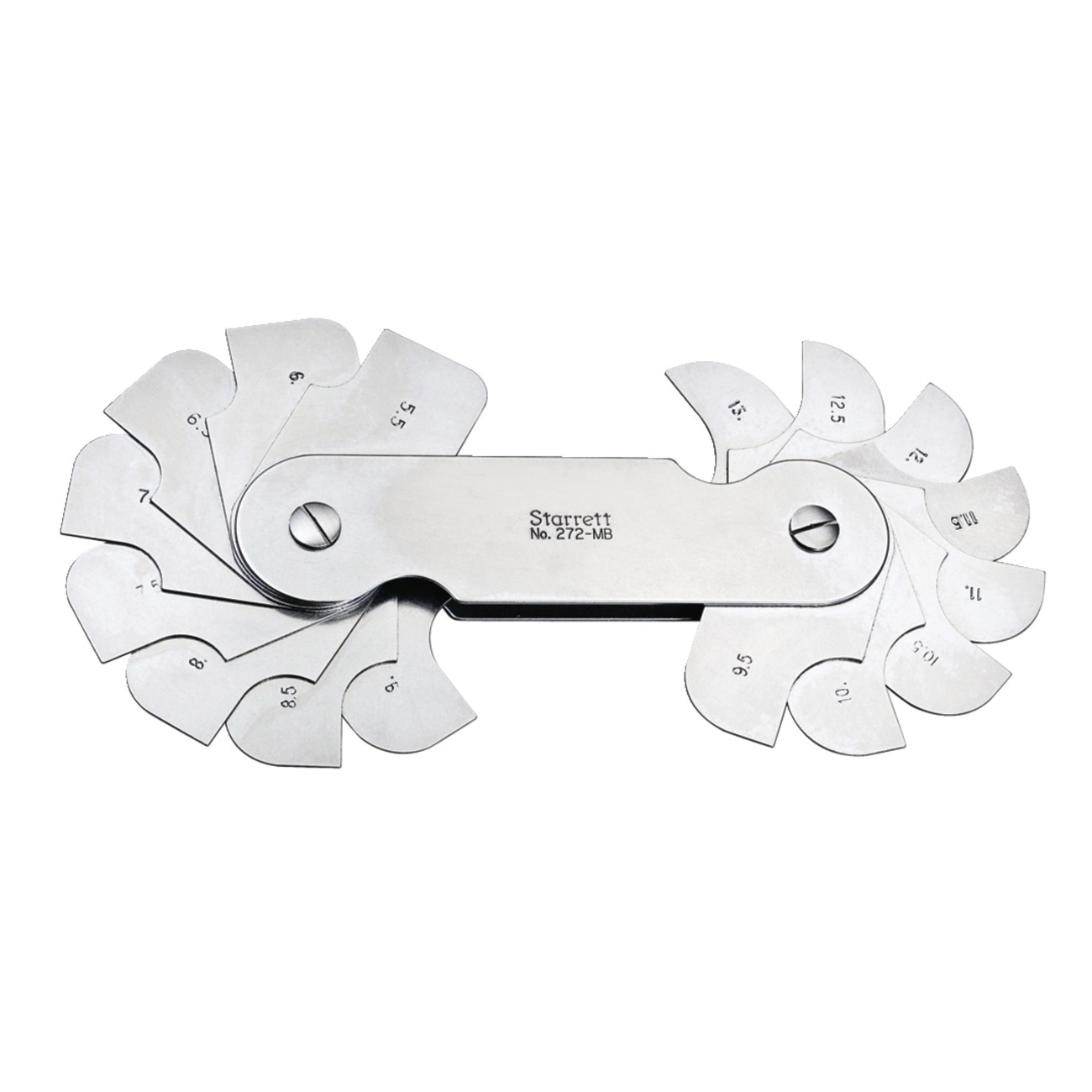

Starrett 272MB Fillet/Radius Gage, 5.5 to 13 mm, 16 Leaves, Stainless Steel
Invoice description:
Fillet Or Radius Gages N O. 272272m Series 16
Factory Order
Starrett Fillet/Radius Gage, Series: 272M, 5.5 to 13 mm Measuring, Graduations: 0.5 mm, 16 Leaves, Stainless Steel, 6-11/64 in L x 25/64 in W x 3-5/64 in H Dimensions
Features
- External and internal radius on each leaf permits both concave and convex surfaces to be measured
- Leaves are specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders
- Leaf has eccentric mounting for clearance between leaf and case when gage is opened
- 5.5-13 mm concave and convex millimeter reading
Specifications
ApplicationFor measuring concave or convex surfaces in woodworking, metalworking, machining, layout and pattern-making applications
Dimensions6-11/64 in L x 25/64 in W x 3-5/64 in H
Graduations0.5 mm
MaterialStainless Steel
Measuring Range5.5 to 13 mm
Number of Leaves16
Series272M
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
