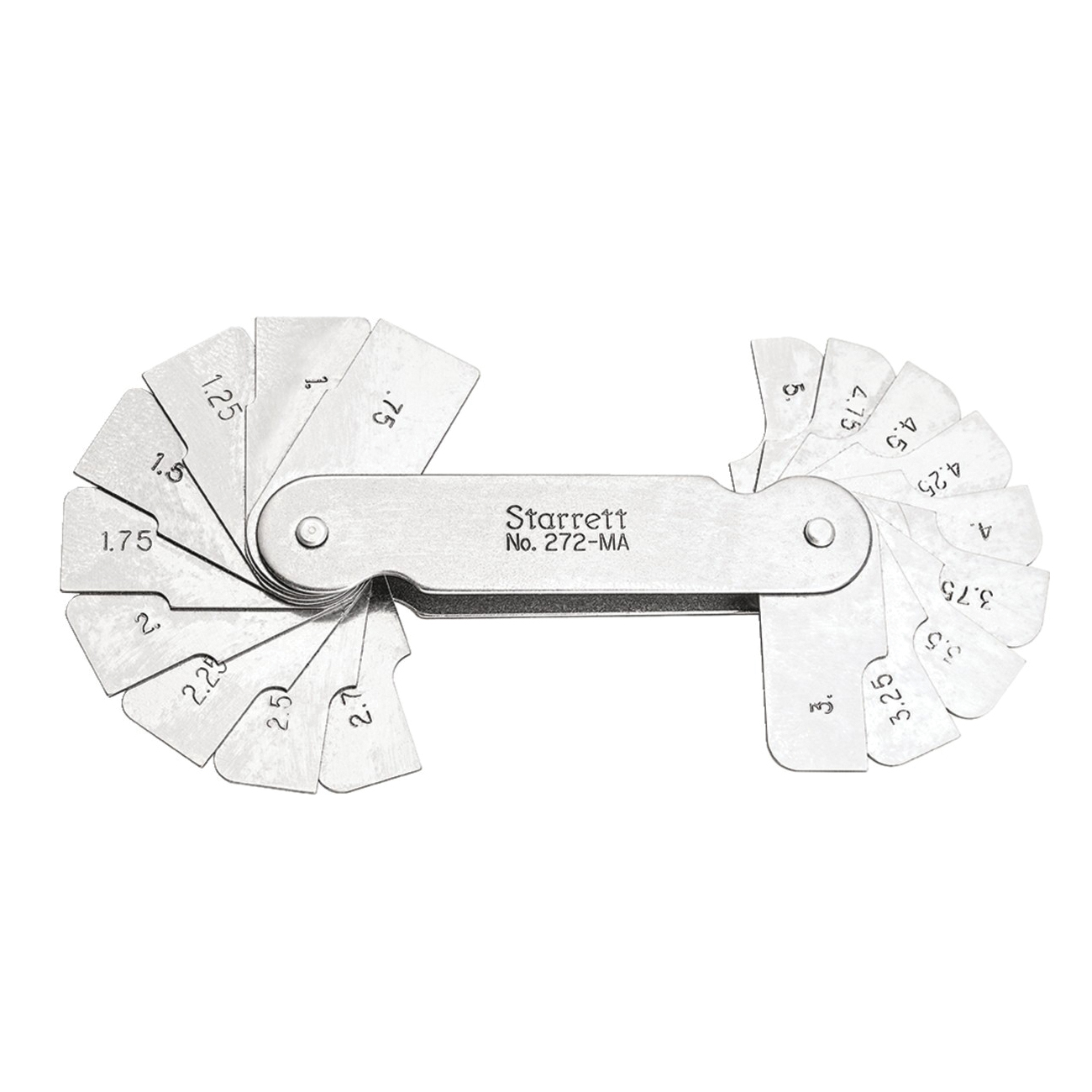

Starrett LSS 272MA

Starrett Fillet/Radius Gage, Series: 272M, 0.75 to 5 mm Measuring, Graduations: 0.25 mm, 18 Leaves, Stainless Steel, 4-3/16 in L x 25/64 in W x 2-1/16 in H Dimensions

• Features

• External and internal radius on each leaf permits both concave and convex surfaces to be measured
• Leaves are specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders
• Leaf has eccentric mounting for clearance between leaf and case when gage is opened
• 0.75-5 mm concave and convex millimeter reading

Specifications

Documents

• Catalog
