Starrett LSS 272B

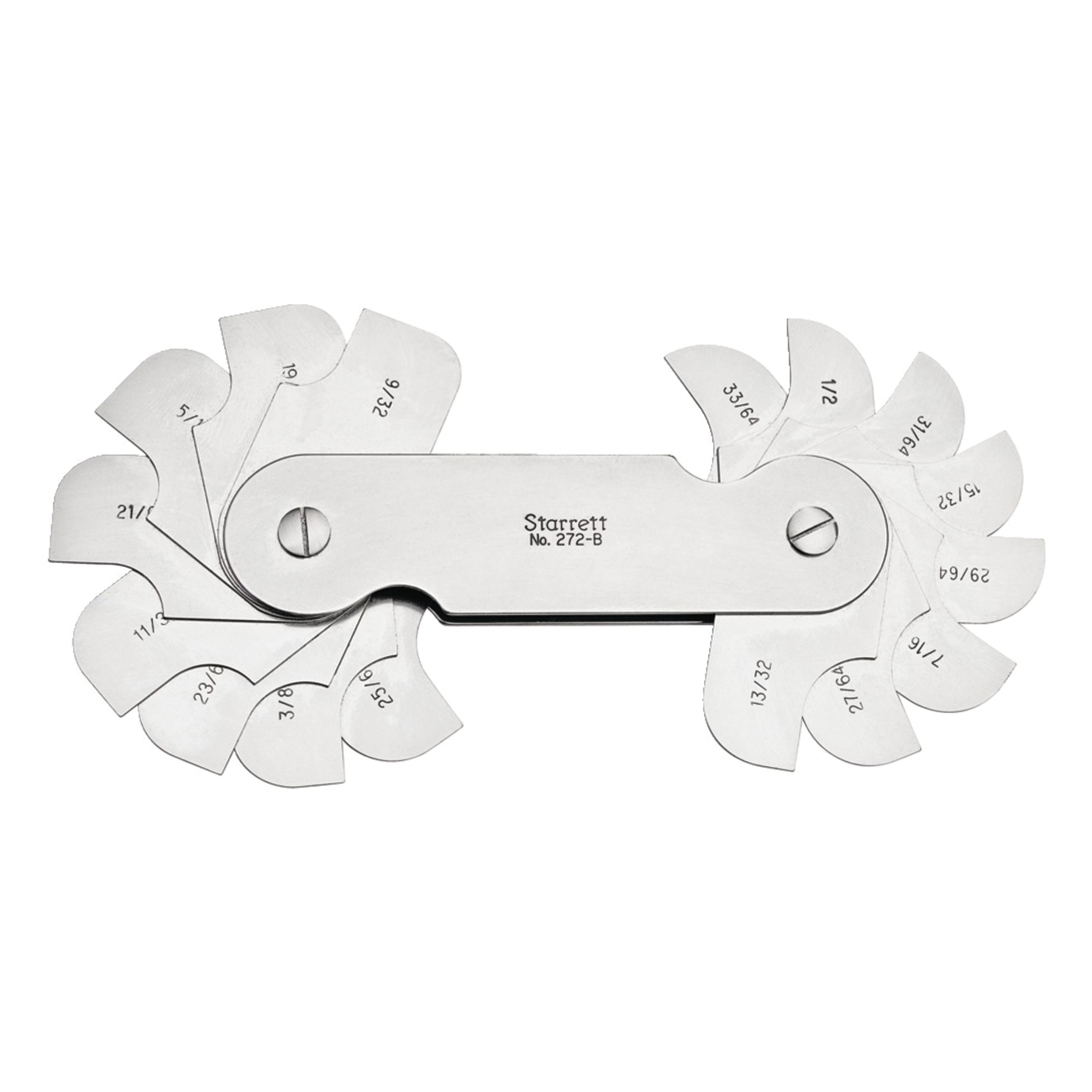

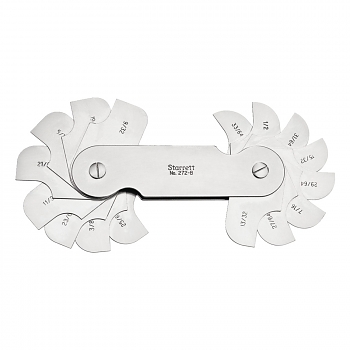

Starrett 272B Fillet/Radius Gage, 9/32 to 33/64 in, 16 Leaves, Stainless Steel

UPC: 049659512984
UNSPSC: 41111600
Manufacturer PN: 272B
$168.74 EA
Factory Order
QTY:


Starrett Fillet/Radius Gage, Series: 272, 9/32 to 33/64 in Measuring, Graduations: 64ths, 16 Leaves, Stainless Steel, 6-5/32 in L x 25/64 in W x 3-1/32 in H Dimensions

  • Features

  • External and internal radius on each leaf permits both concave and convex surfaces to be measured
  • Leaves are specially shaped for use in any position at any angle to measure fillets and radii in corners or against shoulders
  • Leaf has eccentric mounting for clearance between leaf and case when gage is opened
  • 9/32-33/64 in concave and convex in reading

Specifications

ApplicationFor measuring concave or convex surfaces in woodworking, metalworking, machining, layout and pattern-making applications
Dimensions6-5/32 in L x 25/64 in W x 3-1/32 in H
Graduations64ths
MaterialStainless Steel
Measuring Range9/32 to 33/64 in
Number of Leaves16
Series272
