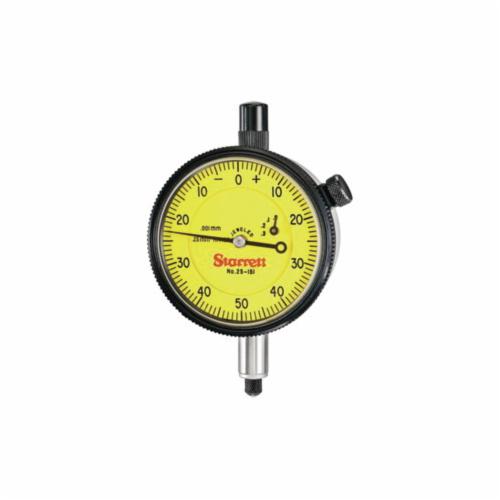

Starrett LSS 25-151J

Starrett 25-151J 25 Series AGD Group 2 Continuous Dial Dial Indicator, 1/4 in, 0 to 50 to 0 Dial Reading, 0.001 in, 2-1/4 in Dial, 3/16 in Dia Tip

UPC: 049659676440
UNSPSC: 41111630
Manufacturer PN: 25-151J
$697.84 EA
Factory Order
QTY:


Starrett Dial Indicator, AGD Group 2 Continuous Dial, Series: 25 Series, 1/4 in, 0 to 50 to 0 Dial, Graduations: 0.001 in, 2-1/4 in Dial, White Dial, 3/16 in Dia Tip, Stainless Steel, Satin/Eggshell

  • Features

  • Rugged and simple unit construction with a "universally fitting" design
  • Sharp bezel serrations for positive grip
  • Unbreakable crystal
  • Hardened stainless steel stem
  • Light but sturdy, no-glare satin finish on case
  • Hardened stainless steel rack, gears, spindle and pinions
  • Massive bridge for rigid bearing support
  • Non-reflecting white eggshell finish on dial
  • With jewel bearings and lug-on-center back mounting
  • 0.001 mm range one revolution

Specifications

ApplicationFor tool and die shops, machine shops and tool rooms
Dial ColorWhite
Dial Reading0 to 50 to 0
Dial Size2-1/4 in
FinishSatin/Eggshell
Graduations0.001 in
MaterialStainless Steel
Measuring Range1/4 in
Series25 Series
Tip Size3/16 in Dia
TypeAGD Group 2 Continuous Dial
