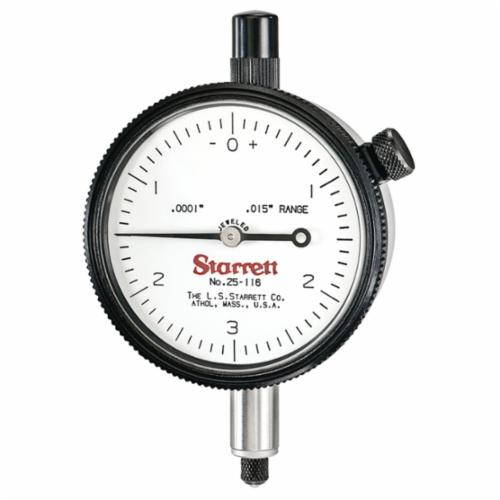

Starrett LSS 25-116J
Starrett 25-116J 25 Series AGD Group 2 Continuous Dial Dial Indicator, 0.015 in, 0 to 3 to 0 Dial Reading, 0.0001 in, 2-1/4 in Dial, 13/64 in Dia Tip
Invoice description:
2 1/4 Dial Indicators Je We Led No. 25 Series
Factory Order
Starrett Dial Indicator, AGD Group 2 Continuous Dial, Series: 25 Series, 0.015 in, 0 to 3 to 0 Dial, Graduations: 0.0001 in, 2-1/4 in Dial, White Dial, 13/64 in Dia Tip, Stainless Steel, Satin/Eggshell
Features
- Rugged and simple unit construction with a "universally fitting" design
- Sharp bezel serrations for positive grip
- Unbreakable crystal
- Hardened stainless steel stem
- Light but sturdy, no-glare satin finish on case
- Hardened stainless steel rack, gears, spindle and pinions
- Massive bridge for rigid bearing support
- Non-reflecting white eggshell finish on dial
- With jewel bearings and lug-on-center back mounting
- 0.006 in range one revolution
Specifications
ApplicationFor tool and die shops, machine shops and tool rooms
Dial ColorWhite
Dial Reading0 to 3 to 0
Dial Size2-1/4 in
FinishSatin/Eggshell
Graduations0.0001 in
MaterialStainless Steel
Measuring Range0.015 in
Series25 Series
Tip Size13/64 in Dia
TypeAGD Group 2 Continuous Dial
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
