Starrett LSS 247MD

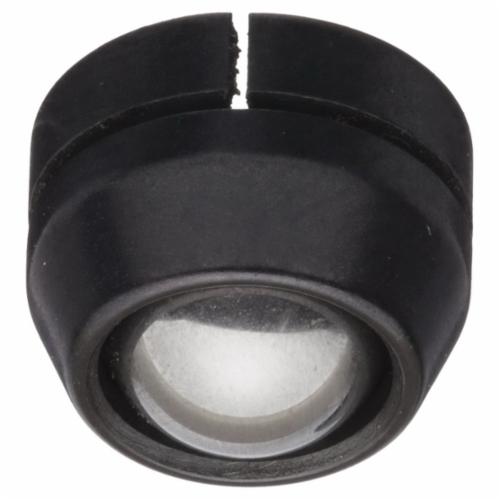

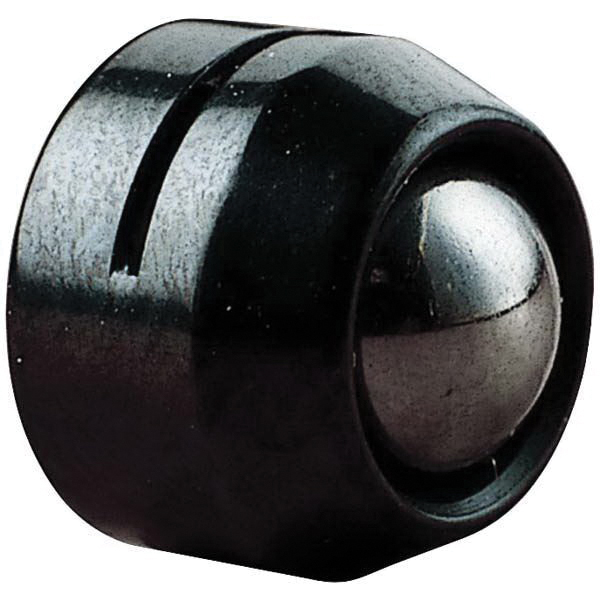

Starrett 247MD Micrometer Ball Attachment, 0.2 in Ball Dia, For Use With 216M and 436.1M Micrometer, 1/4 in Anvil and Spindle Dia, Black Enamel Coated/Satin Polished Chrome
Invoice description:
Micrometer Ball Attachme Nt S No. 247 247m Se
Factory Order
Starrett Micrometer Ball Attachment, For Use With: 216M and 436.1M Micrometer, 1/4 in Anvil and Spindle Dia, 0.2 in Ball Dia, Black Enamel Coated/Satin Polished Chrome
Features
- Easily applied by snapping on to end of either anvil or spindle, thus permitting two attachments to be used together
- Balls are hardened and move freely in the retainer, insuring positive contact with anvil and spindle
- The diameters, 0.200 or 5mm, of each ball used must be subtracted from the micrometer reading
Specifications
ApplicationFor measuring wall thickness of tubing, split and full bearings, sleeves and other parts with rounded surfaces
FinishBlack Enamel Coated/Satin Polished Chrome
Specifications0.2 in Ball Dia
Suitable For Use With216M and 436.1M Micrometer, 1/4 in Anvil and Spindle Dia
Additional Information
Country of OriginUS
