Starrett LSS 245M

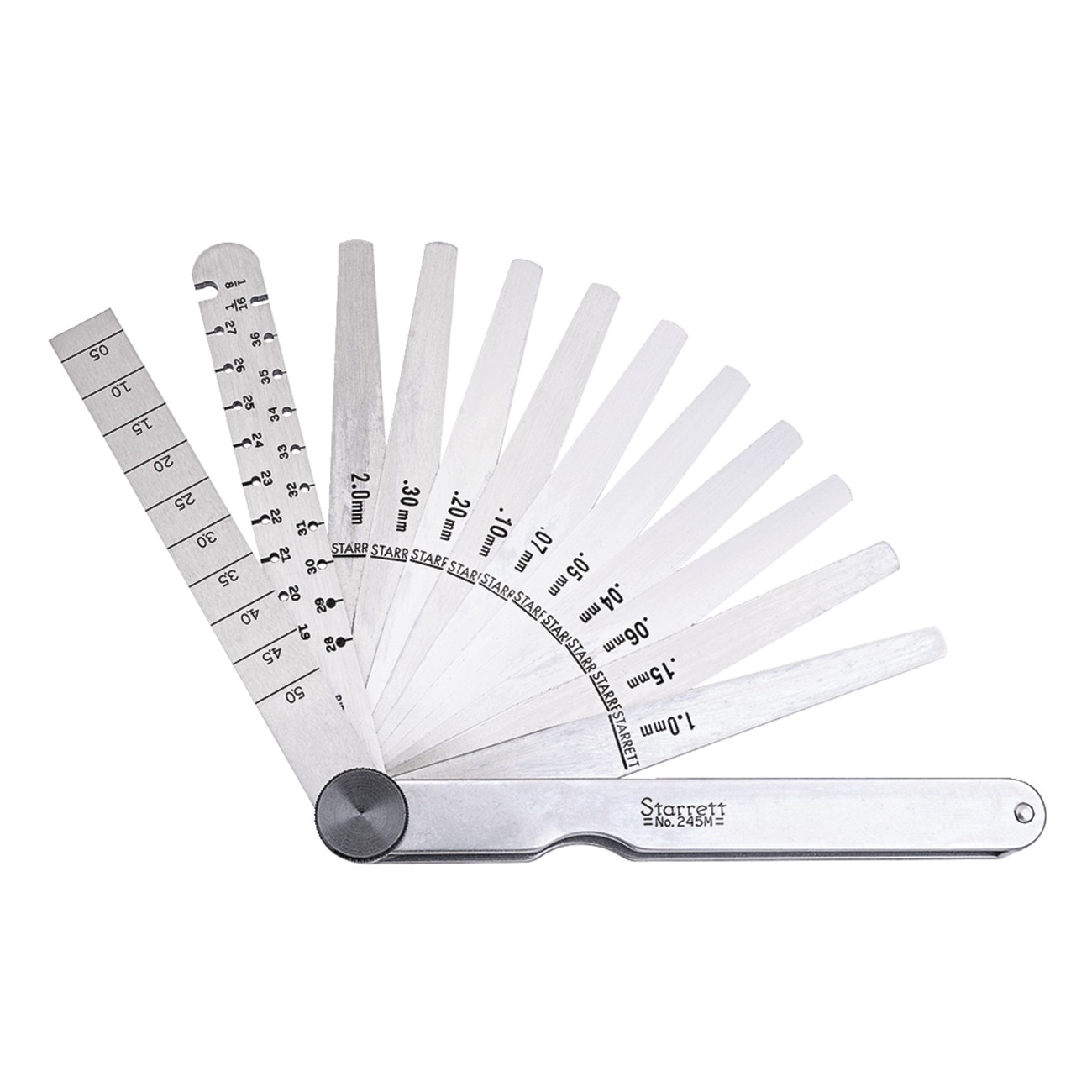

Starrett 245M Thickness Gage, 0.04 to 2 mm, Graduations: 0.5 mm One Side, mm and 1/2 mm on Reverse, Tempered Steel
Invoice description:
Engineers Taper Wire Thi Ck Ness Gage No. 245
Factory Order
Starrett Thickness Gage, 0.04 to 2 mm, Graduations: 0.5 mm One Side, mm and 1/2 mm on Reverse, Tempered Steel, 8-55/64 in L x 47/64 in THK
Features
- Compact steel case
- English standard wire gage, sizes numbered from 19-36 (0.042 - 0.004 in), plus two additional sizes 1/16 in and 1/8 in
- The reverse side has decimal equivalents in thousandths
- Has a taper gage leaf for measuring slot widths from 0.5 - 5 mm in 0.5 mm
- The reverse side having an 80 mm scale graduated in mm and 1/2 mm
- Has eleven thickness or feeler leaves
- 12.7 - 7 mm W x 120 mm L leaves
- Millimeter system of measurement
- English standard wire gage and 11 mm reading thickness gage leaves
Specifications
Dimensions8-55/64 in L x 47/64 in THK
Graduations0.5 mm One Side, mm and 1/2 mm on Reverse
MaterialTempered Steel
Measuring Range0.04 to 2 mm
Additional Information
Includes0.04 mm, 0.05 mm, 0.06 mm, 0.07 mm, 0.08 mm, 0.15 mm, 0.1 mm, 0.2 mm, 0.3 mm, 1 mm and 2 mm THK Leaves
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
