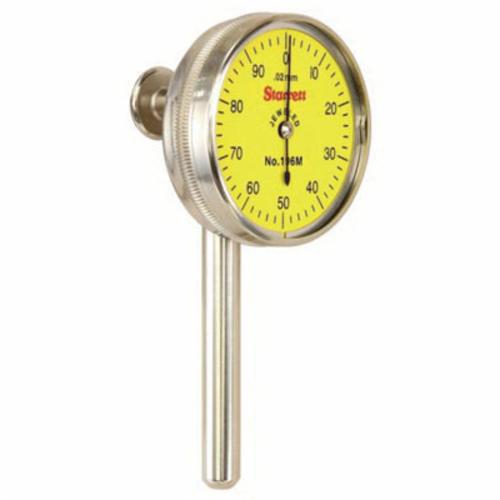

Starrett LSS 196MB5
Starrett 196MB5 196 Series Universal Back Plunger Dial Indicator, 5 mm, 0 to 50 Dial Reading, 0.02 mm, 1.38 in Dial
Invoice description:
Universal Back-plunger D Ia L Test Indicators
Factory Order
Starrett Dial Indicator, Universal Back Plunger, Series: 196 Series, 5 mm, 0 to 50 Dial, Graduations: 0.02 mm, 1.38 in Dial, Yellow Dial, Satin Chrome
Features
- One of the most versatile indicators available
- Accurate and reliable
- Simple to operate
- Rugged, with few moving parts
- Smooth in operation
- For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model
- Then the contact should be brought against the work with enough pressure to give the hand one full turn
- Set the hand at zero by rotating the dial with the knurled bezel
- This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation
- 6.3 mm shank diameter
Specifications
Dial ColorYellow
Dial Reading0 to 50
Dial Size1.38 in
FinishSatin Chrome
Graduations0.02 mm
Measuring Range5 mm
Series196 Series
TypeUniversal Back Plunger
Additional Information
Includes(3) Contact Points and (1) Adapter
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
