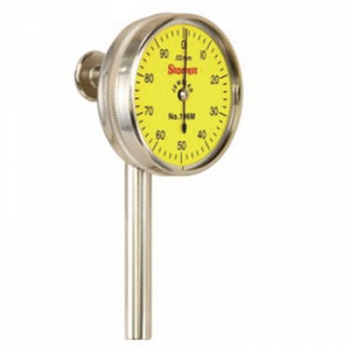

Starrett LSS 196MB1
Starrett 196MB1 196 Series Universal Back Plunger Dial Indicator, 5 mm, 0 to 100 Dial Reading, 0.02 mm, 1.45 in Dial
Starrett Dial Indicator, Universal Back Plunger, Series: 196 Series, 5 mm, 0 to 100 Dial, Graduations: 0.02 mm, 1.45 in Dial, Yellow Dial, Satin Chrome
Features
- One of the most versatile indicators available
- Accurate and reliable
- Simple to operate
- Rugged, with few moving parts
- Smooth in operation
- For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model
- Then the contact should be brought against the work with enough pressure to give the hand one full turn
- Set the hand at zero by rotating the dial with the knurled bezel
- This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation
- 6.3 mm shank diameter
Specifications
Dial ColorYellow
Dial Reading0 to 100
Dial Size1.45 in
FinishSatin Chrome
Graduations0.02 mm
Measuring Range5 mm
Series196 Series
TypeUniversal Back Plunger
