Starrett LSS 196B6

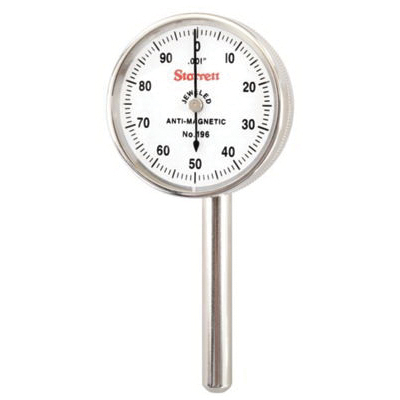

Starrett 196B6 196 Series Universal Back Plunger Dial Indicator, 0.2 in, 0 to 100 Dial Reading, 0.001 in, 1.45 in Dial
Invoice description:
Universal Back-plunger D Ia L Test Indicators
Factory Order
Starrett Dial Indicator, Universal Back Plunger, Series: 196 Series, 0.2 in, 0 to 100 Dial, Graduations: 0.001 in, 1.45 in Dial, White Dial, Satin Chrome
Features
- One of the most versatile indicators available
- Accurate and reliable
- Simple to operate
- Rugged, with few moving parts
- Smooth in operation
- For full use, the operator first chooses the proper contact from the three hardened contact points that come with each model
- Then the contact should be brought against the work with enough pressure to give the hand one full turn
- Set the hand at zero by rotating the dial with the knurled bezel
- This provides one full rotation of the hand both to the right and left of zero, showing a rise or drop in the work and the amount of that variation
- 1/4 in shank diameter
Specifications
Dial ColorWhite
Dial Reading0 to 100
Dial Size1.45 in
FinishSatin Chrome
Graduations0.001 in
Measuring Range0.2 in
Series196 Series
TypeUniversal Back Plunger
Additional Information
IncludesAntimagnetic Indicator with 3 Contact Points
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
