Starrett LSS 178MB

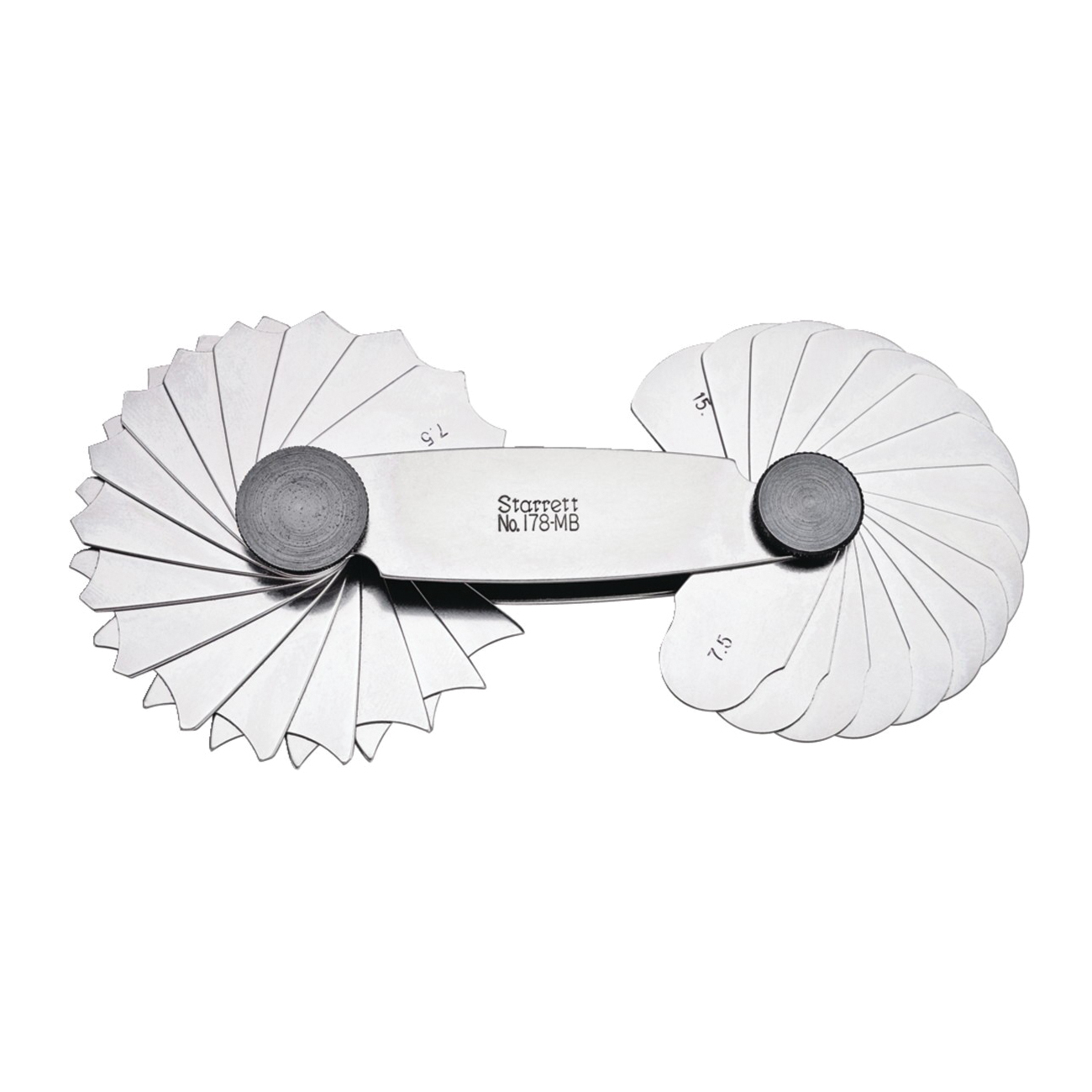

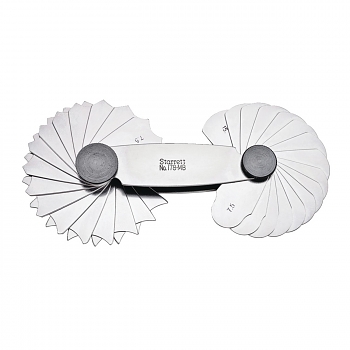

Starrett 178MB Fillet/Radius Gage With Locking Device, 7.5 to 15 mm, 32 Leaves, Stainless Steel
Invoice description:
No. 178, 178m Series, Fillet Or Radius Gag
Factory Order
Starrett Fillet/Radius Gage, Series: 178M, 7.5 to 15 mm Measuring, Graduations: 0.5 mm, 32 Leaves, Stainless Steel, 5-35/64 in L x 41/64 in W x 2-21/32 in H Dimensions
Features
- Very useful for tool and diemakers, machinists, screw machine operators and patternmakers to lay out and check radii of tools, dies, and patterns
- Made of nicely finished, high quality steel
- 7.5-15 mm concave and convex reading
- Any one of the leaves can be securely locked in position by a locking device
- Each gage has leaves for measuring both concave and convex radii, with each leaf stamped with the radius size
- Millimeter system of measurement
Specifications
ApplicationFor tool and diemakers, machinists, screw machine operators, patternmakers and other mechanics to lay out and check radii of tools, dies and patterns
Dimensions5-35/64 in L x 41/64 in W x 2-21/32 in H
Graduations0.5 mm
MaterialStainless Steel
Measuring Range7.5 to 15 mm
Number of Leaves32
Series178M
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
Full Engineering Drawing
