Starrett LSS 1126-60

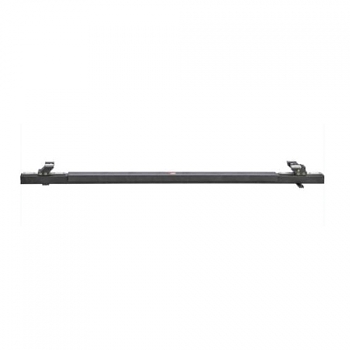

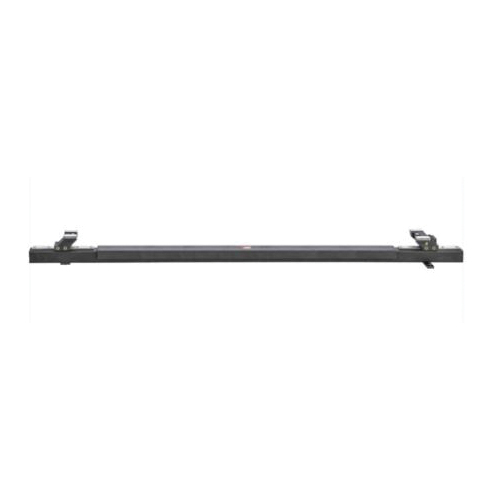

Starrett 1126-60 Internal External Adjustable Setting Master, 54 to 60 in L Range, For Use With 1107 and 1101 Diameter Gage

Invoice description: Internal-external Adjust Ab Le Setting Master

UPC: 049659531671

UNSPSC: 27111800

Manufacturer PN: 1126-60

^$5,431.14 EA

Factory Order

Starrett Adjustable Setting Master, Internal External, Series: 1126, For Use With: 1107 and 1101 Diameter Gage, 54 to 60 in L Range, 67-1/2 in L

Features
Both heads can be reversed for I.D. or O.D. settings
A platen on each head locates the diameter gage from its feet
The position of the gage contacts is matched by the anvils on the masters which are vertically adjustable
The reference head anvil has a fine adjustment for final settings, plus a restrictor to help position the gage in the master
Each master has a fixed single point rest and two leveling screws which provide a three-point suspension
All contact and working surfaces are hardened and ground
These setting masters are used to check and reset diameter gages under production gaging conditions
Each master consists of a rigid box beam with reference and sensitive heads which are individually adjustable along dovetail ways
