Starrett LSS 1100-60-1

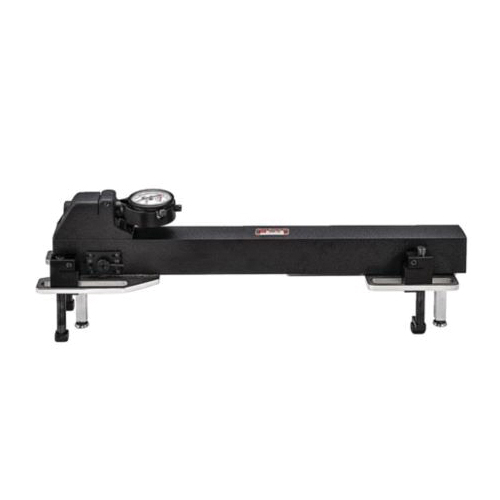

Starrett 1100-60-1 1100 Series Heavy Duty Dial Indicator Diameter Gage, 54 to 60 in, 0.0001 in
Invoice description:
No. 1100-1, 1100m-2 Seri Es 26 Heavy-duty Dia
Factory Order
Starrett Dial Indicator Diameter Gage, Heavy Duty, Series: 1100 Series, 54 to 60 in, Graduations: 0.0001 in
Features
- The dial has a double row of graduations reading in opposite directions - minus in red and plus in black
- The sensitive contact transfers dimensions to the dial indicator through a linear friction-free mechanism
- There are two gage feet at the reference end and one foot at the sensitive end of the gage to set the gage on the work and align the contacts
- Gage depth is set by adjusting the gage feet up or down
- A lever-actuated reverse mechanism loads the gage for either inside or outside diameter measurements
- The gage contacts are easily changed to I.D. or O.D. gaging by turning them end for end
- Unless otherwise specified, the dial indicator sent with the gage reads in 0.0005 in increments with a total range of +/- 0.03 in
Specifications
ApplicationFor used to measure both outside and inside diameters by comparing dimensions to gage blocks or an adjustable setting master
Graduations0.0001 in
Measuring Range54 to 60 in
Series1100 Series
TypeHeavy Duty
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
