Starrett LSS 1015MB-100

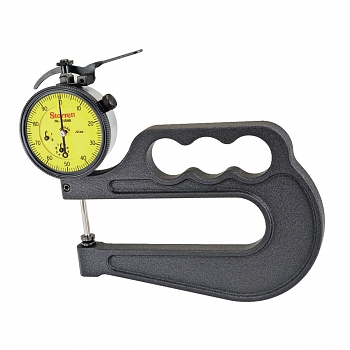

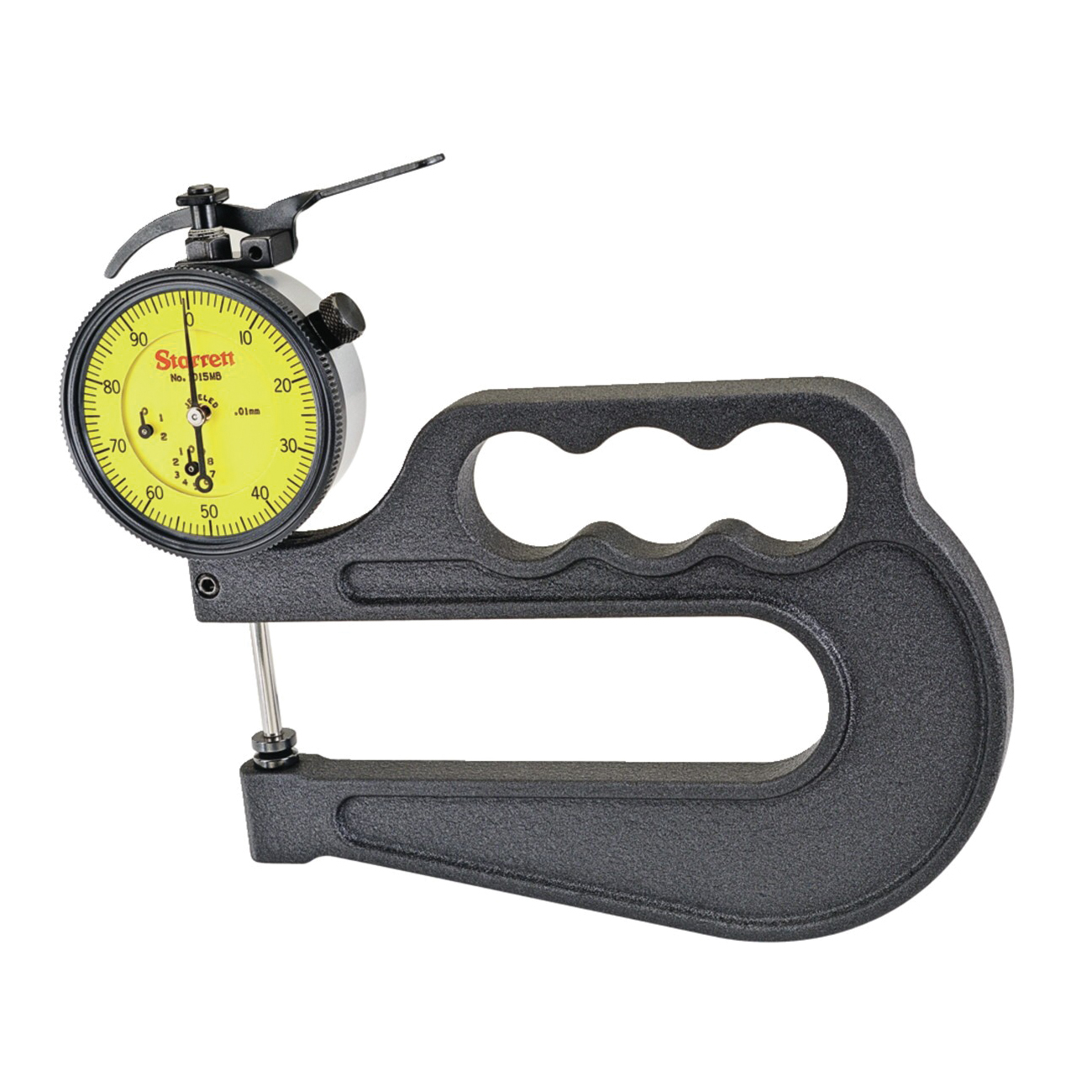

Starrett 1015MB-100 Portable Dial Thickness Gage Without Case, 25 mm, Graduations: 0.01 mm, 1/4 in Dia Flat Contact, 100 mm D Throat
Invoice description:
Portable Dial Thickness Ga Ges No. 10151015m
Factory Order
Starrett Portable Dial Thickness Gage, Series: 1015M, 25 mm, 1/4 in Flat Contact Dia, Graduations: 0.01 mm, 100 mm Throat Depth, Electronic Indicator Display
Features
- After inserting work between the measuring contacts, releasing the lever will cause the spindle to contact the work, giving an accurate size reading because measuring pressure is independent of the user
- The contact edges are radiused to prevent the work from being marred or deflected
- The flat contact area measures 1/4 in (6.3 mm) diameter and is 1/8 in (0.125 mm) THK
- Indicators have jewel bearings and continuous dials
- Special contact sizes and shapes are available by request
- Millimeter system of measurement
- 0 - 100 Dial reading
Specifications
Display TypeElectronic Indicator
Flat Contact Diameter1/4 in
Graduations0.01 mm
Measuring Range25 mm
Series1015M
Throat Depth100 mm
Additional Information
Standards/ApprovalPROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm
Country of OriginUS
