Starrett LSS 1015MB

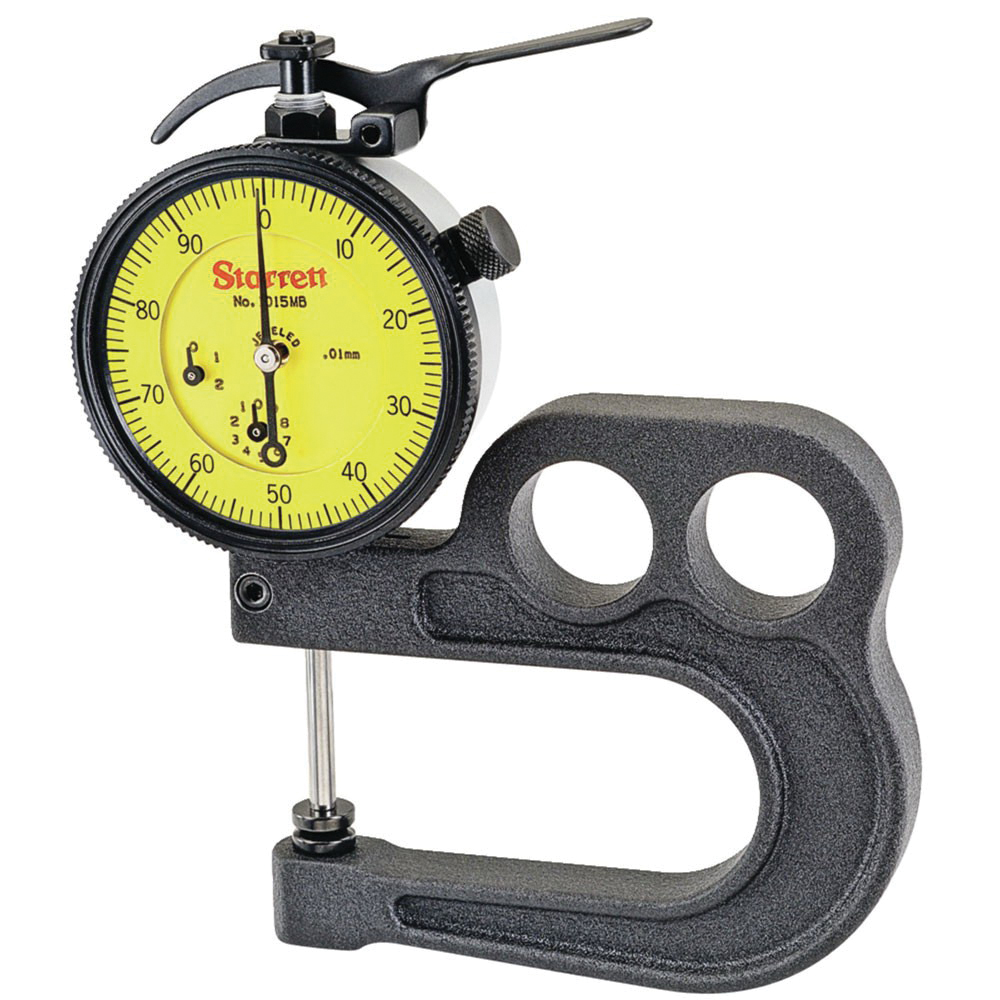

Starrett 1015MB Portable Dial Hand Gage, 25 mm, Graduations: 0.01 mm, 1/4 in Dia Flat Contact, 63 mm D Throat
Invoice description:
Portable Dial Thickness Ga Ges No. 10151015m
Factory Order
Starrett Dial Hand Gage, Portable, Series: 1015, 25 mm, 1/4 in Flat Contact Dia, Graduations: 0.01 mm, 0.01 mm Resolution, 63 mm Throat Depth
Features
- The contact edges are radiused to prevent the work from being marred or deflected
- Indicators have jewel bearings and continuous dials
- The flat contact area measures 1/8 in thick
- Cast frame construction
- 0-100 mm dial reading
Specifications
ApplicationFor measure material thickness
Flat Contact Diameter1/4 in
Graduations0.01 mm
Measuring Range25 mm
Resolution0.01 mm
Series1015
Throat Depth63 mm
TypePortable
Additional Information
Standards/ApprovalPROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP)/which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP)/which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of OriginUS
