Starrett LSS 1015MA-100

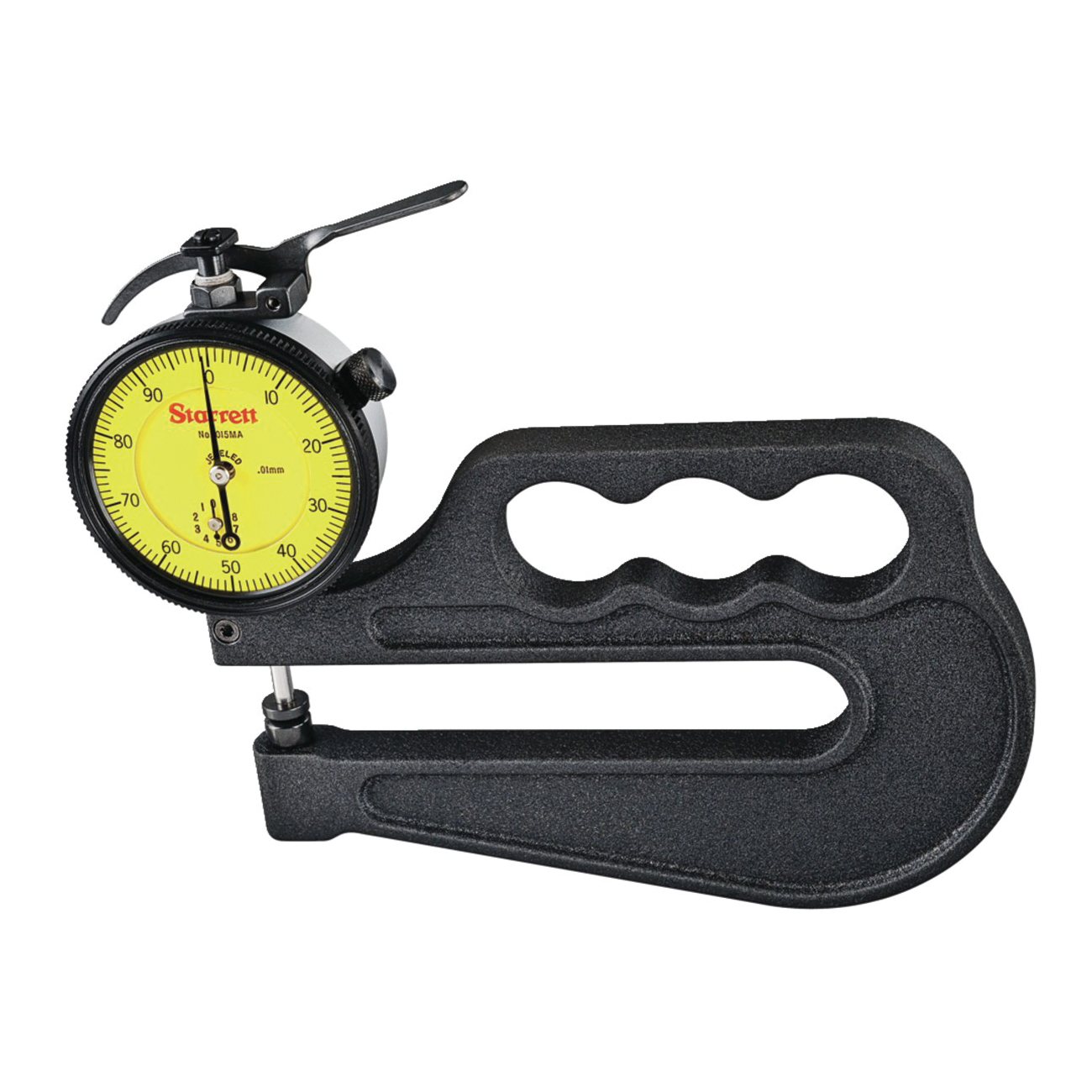

Starrett 1015MA-100 Portable Dial Thickness Gage Without Case, 10 mm, Graduations: 0.01 mm, 1/4 in Dia Flat Contact, 100 mm D Throat

Invoice description: Portable Dial Thickness Ga Ges No. 10151015m

UPC: 049659676471

UNSPSC: 41111600

Manufacturer PN: 1015MA-100

^$929.50 EA

Factory Order

enlarge

Product Overview

Starrett Portable Dial Thickness Gage, Series: 1015M, 10 mm, 1/4 in Flat Contact Dia, Graduations: 0.01 mm, 100 mm Throat Depth, Electronic Indicator Display, 6-27/32 in L

Features
After inserting work between the measuring contacts, releasing the lever will cause the spindle to contact the work, giving an accurate size reading because measuring pressure is independent of the user
The contact edges are radiused to prevent the work from being marred or deflected
The flat contact area measures 1/4 in (6.3 mm) diameter and is 1/8 in (0.125 mm) THK
Indicators have jewel bearings and continuous dials
Special contact sizes and shapes are available by request
Millimeter system of measurement
0 - 100 Dial reading
