Klein KLN 1628-50

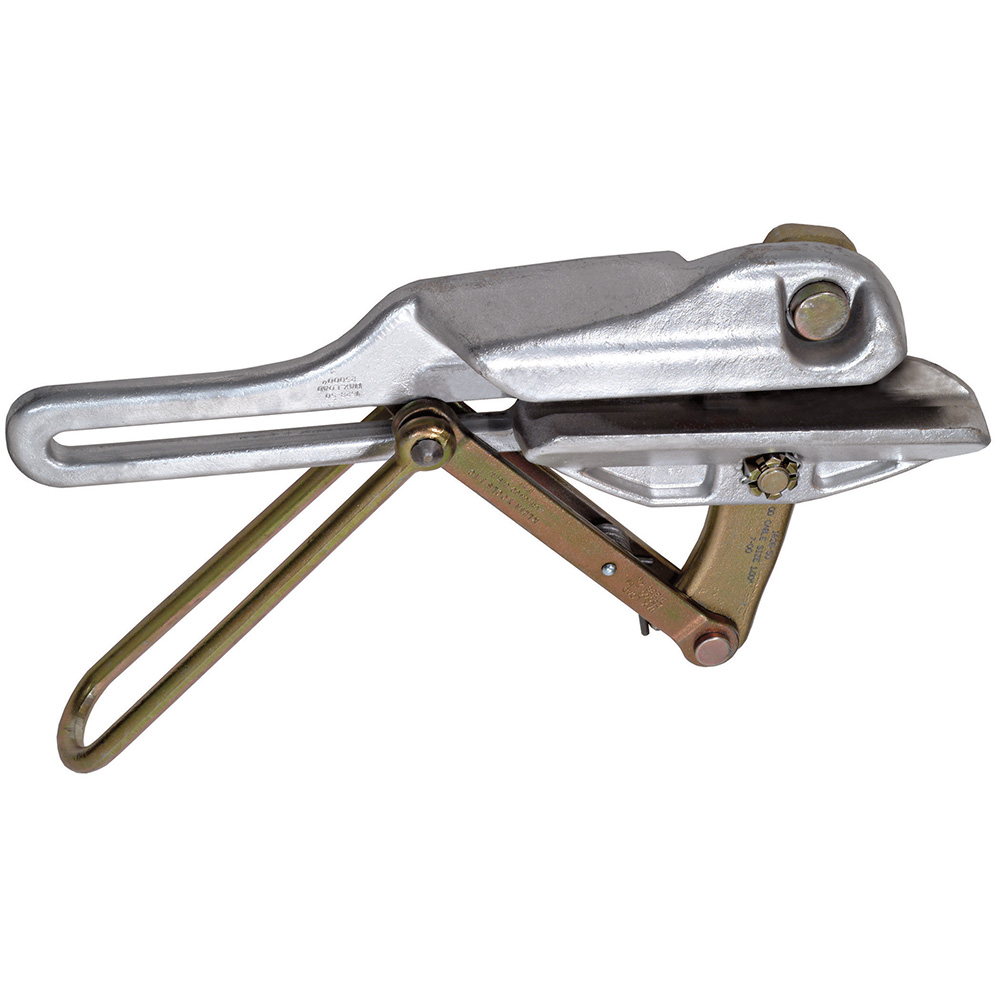

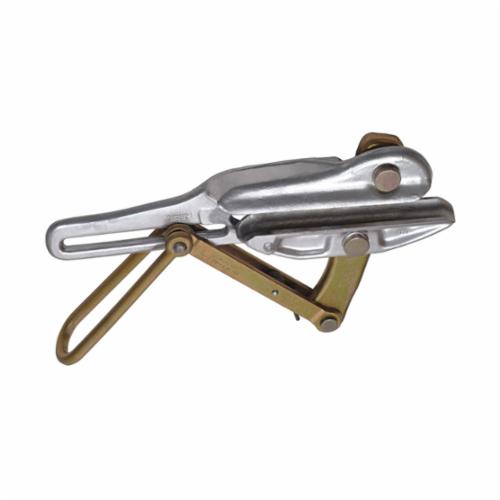

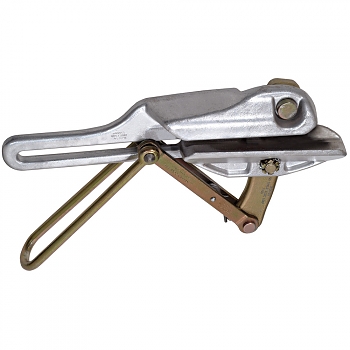

Klein Chicago Grip 1628-50 Cable Pulling Grip, 0.95 to 1.89 in Dia Cable, 25000 lb Load, Steel
Klein Chicago Grip Cable Pulling Grip, 0.95 to 1.89 in Dia Cable, ACSR Cable, 25000 lb, Steel
Features
- Jaw must be removed to insert cable
- Designed for hollow conductors and other large diameter cables
- Round jaws are shaped to provide maximum contact with the cable, virtually eliminating conductor damage
- Orders must specify exact outside diameter of cables, circular mills with strand combination or manufacturers code
- Furnished with removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
- Minimum-maximum sizes listed indicate the unfinished size-range capability for each Cat. No. each grip is finished to fit one specific cable size only within range shown
- Maximum safe stringing tension 12500 lb to minimize conductor damage
- 666600 CM ACSR 1 in cable capacity
- Removable jaw allows for installation of cable
- Removable jaw allows for installation of cable
Specifications
ApplicationFor large diameter conductors
Cable Size0.95 to 1.89 in Dia
Cable TypeACSR
Load Capacity25000 lb
MaterialSteel
