Irwin IRW 323000

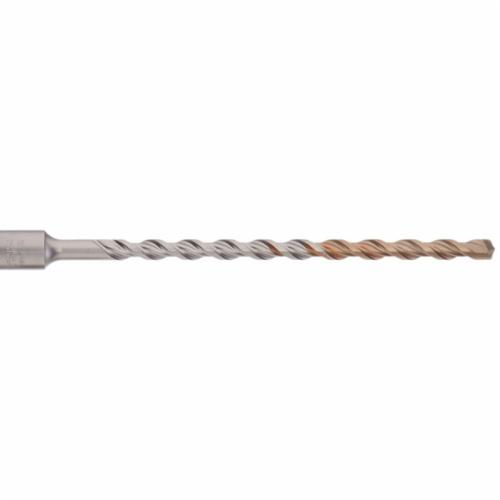

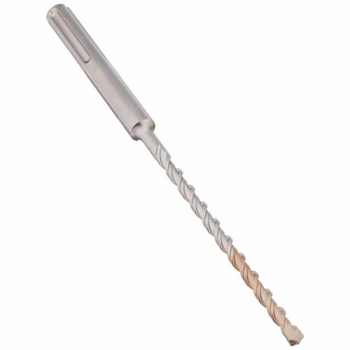

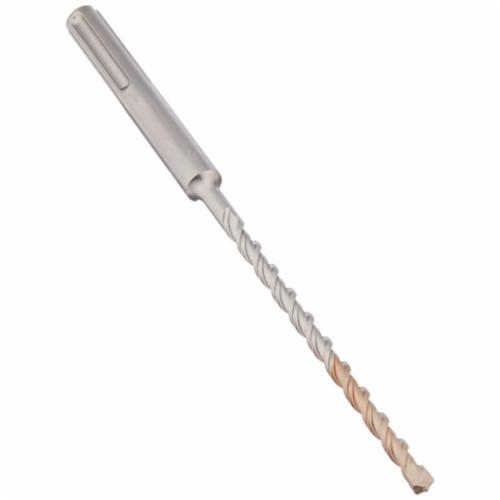

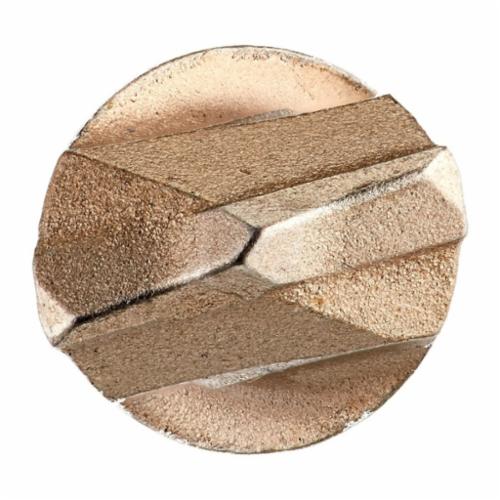

Irwin 323000 2-Cutter Rotary Hammer Drill Bit, 3/8 in Drill Bit, SDS-Max Shank, 8 in D Cutting, Carbide Cutting Edge, 13 in OAL

Invoice description: Drill Bit, 3/8 X 8 X 13 Sd 26 S-max 2c

UPC: 024721008626
UNSPSC: 27111543
Manufacturer PN: 323000
$46.54 EA
Factory Order
QTY:


Irwin Rotary Hammer Drill Bit, 2-Cutter, 3/8 in Drill Bit, Drilling, 13 in Overall Length, 8 in Cutting Depth, 2 Flutes, Spiral Flute, 8 in Flute Length, SDS-Max Shank, Standard Point, Right Hand Cutting Direction, Carbide Cutting Edge, Chrome Vanadium Spring Steel, Applicable Materials: Masonry

  • Features

  • Fits all SDS-Max rotary hammers and Hilti TE F, G and Y rotary hammers
  • Patented flute geometry removes dust from the hole quicker for fast drilling and long life
  • Shot peened, double tempered finish reduces breakage
  • Copper braze material gives high heat resistance for reduced tip loss
  • Chrome vanadium shaft through hardened to 50 to 53 HRC

Specifications

ApplicationFor masonry drilling applications
Applicable MaterialsMasonry
Cutting Depth8 in
Cutting DirectionRight Hand
Cutting Edge MaterialCarbide
Drill Bit FunctionDrilling
Drill Bit Size3/8 in
Flute Length8 in
Flute TypeSpiral
MaterialChrome Vanadium Spring Steel
Number of Flutes2
Overall Length13 in
Point TypeStandard
Shank TypeSDS-Max
Type2-Cutter

Additional Information

Standards/ApprovalANSI Specified
Country of OriginDE
