Brady BRA 51390

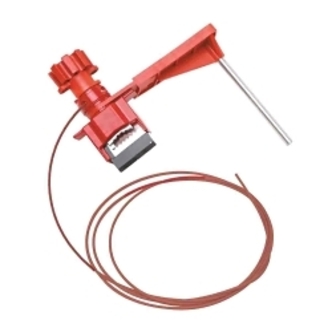

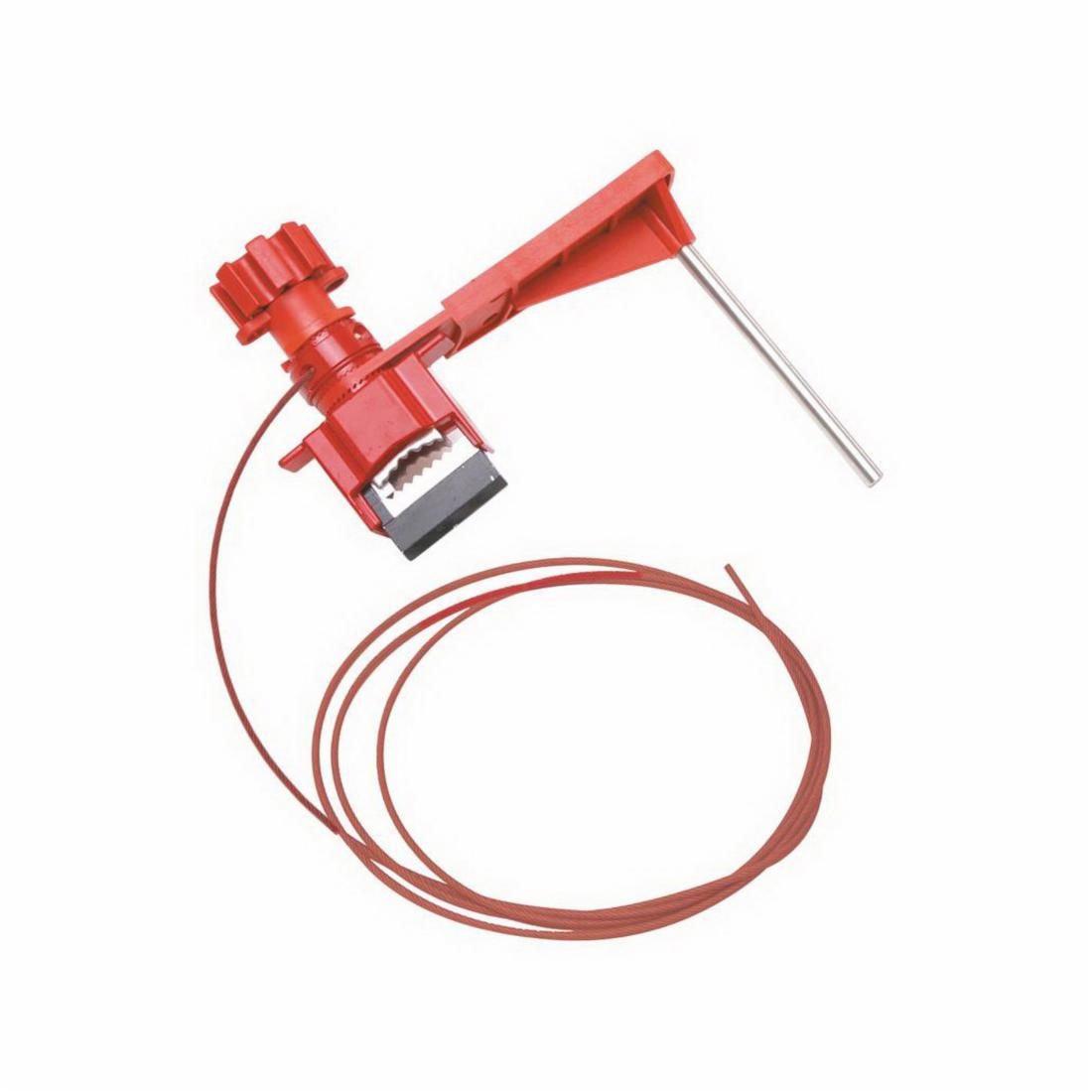

Brady 51390 Small Universal Ball Valve Lockout Cable Attachment With 8 ft Nylon Cable and Blocking Arm, Fits Min Handle Size: 1 in W x 0.6 in THK, Fits Max Handle Size: 1 in W x 0.6 in THK, 1 Padlocks, 0 deg F Min Temperature, 250 deg F Max
Invoice description:
Small Univ Valve Lo W/ar M & 8 Ft Cable Att
Factory Order
Brady Ball Valve Lockout Cable Attachment, Small Universal, Fits Minimum Handle Size: 1 in W x 0.6 in THK, Fits Maximum Handle Size: 1 in W x 0.6 in THK, 1 Padlocks Maximum, 0.39 in Padlock Shackle Maximum Diameter, LOTO-24 Brass/Fiberglass Reinforced Nylon/Stainless Steel, Red, 0 deg F Minimum, 250 deg F Maximum
Features
- Lockout all types of valves with a single universal device, the universal valve lockout system from Brady is rugged, easy to use and replaces the need for multiple devices
- Made of rugged industrial-grade steel and nylon for extra impact and chemical resistance
- Versatile open ended clamp fits over most closed rings and wide handles
- Device can also lockout large levers, T-handles and other hard to secure mechanical devices
- Blocking arm (included) locks out quarter-turn ball values;add a second optional blocking arm (sold separately) to lock out 3-, 4- or 5-way valves
Specifications
ApplicationMechanical Risk Lockout Applications
ColorRed
Fits Maximum Handle Size1 in W x 0.6 in THK
Fits Minimum Handle Size1 in W x 0.6 in THK
MaterialLOTO-24 Brass/Fiberglass Reinforced Nylon/Stainless Steel
Maximum Number of Padlocks1
Maximum Temperature250 deg F
Minimum Temperature0 deg F
Padlock Shackle Maximum Diameter0.39 in
TypeSmall Universal
Additional Information
Includes8 ft Nylon Cable and 6.05 in H x 6.2 in W Blocking Arm
Standards/ApprovalANSI Z244.1|ASSE Z244.1|OSHA 29 CFR 1910.147
Country of OriginCN
Technical Bulletin
