Apex APX SF-5124

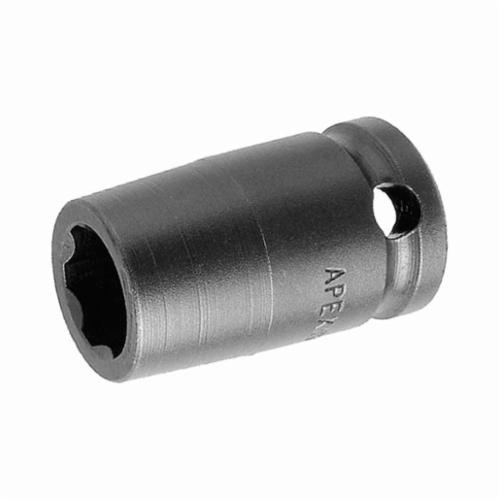

Apex SF-5124 Standard Length Socket, Imperial, 1/2 in Female Square Drive, 3/4 in Socket, 6 Points
Invoice description:
Sckt 1/2 Fmale Sq Drv 3/ 4
Factory Order
Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Imperial, Female Square Drive, 1/2 in Drive, 3/4 in Socket, 1-1/2 in Overall Length, 15/32 in Opening Depth, 1-1/8 in Drive End Width, 1-1/8 in Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width1-1/8 in
Drive Size1/2 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemImperial
Number of Points6
Opening Depth15/32 in
Overall Length1-1/2 in
Socket End Width1-1/8 in
Socket Size3/4 in
TypeStandard Length
Additional Information
Standards/ApprovalASME B107.112
Country of OriginUS
