Apex APX SF-19MM25

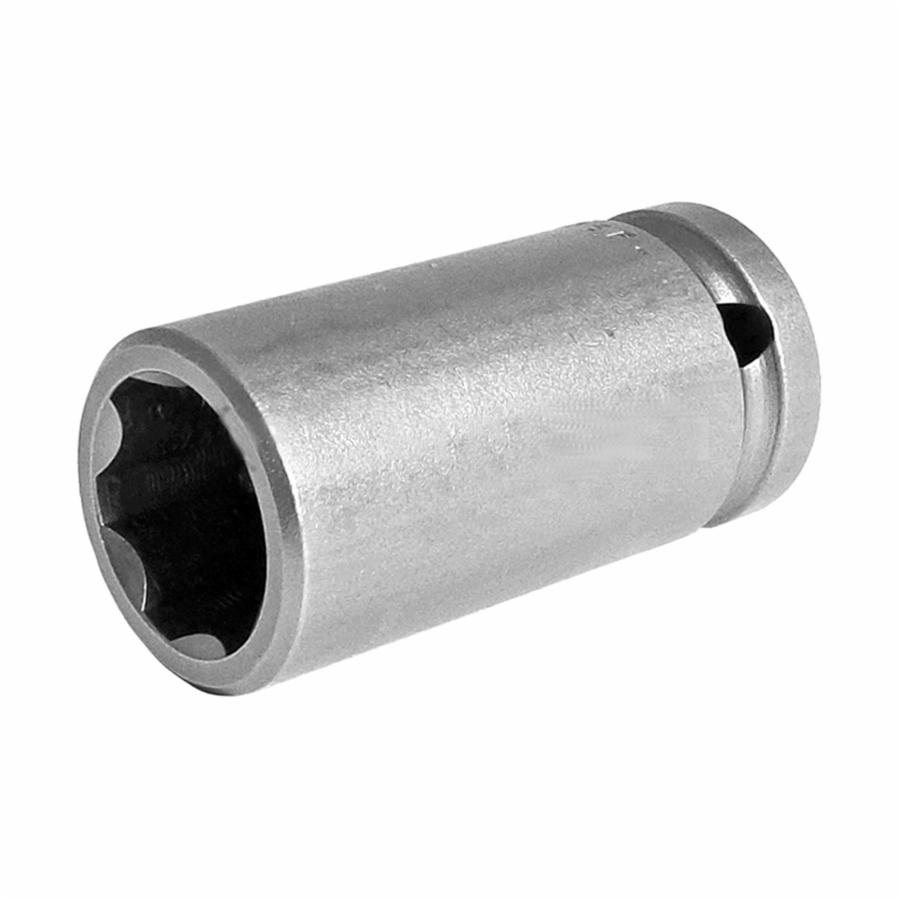

Apex SF-19MM25 Long Length Socket, Metric, 1/2 in Female Square Drive, 19 mm Socket, 6 Points
Invoice description:
Sckt 1/2 Fmale Sq Drv 19 M
Factory Order
Apex Socket, Long Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 1/2 in Drive, 19 mm Socket, 57.1 mm Overall Length, 11.9 mm Opening Depth, 28.6 mm Drive End Width, 28.6 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width28.6 mm
Drive Size1/2 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth11.9 mm
Overall Length57.1 mm
Socket End Width28.6 mm
Socket Size19 mm
TypeLong Length
Additional Information
Standards/ApprovalASME B107.113
Country of OriginUS
