Apex APX SF-10MM11

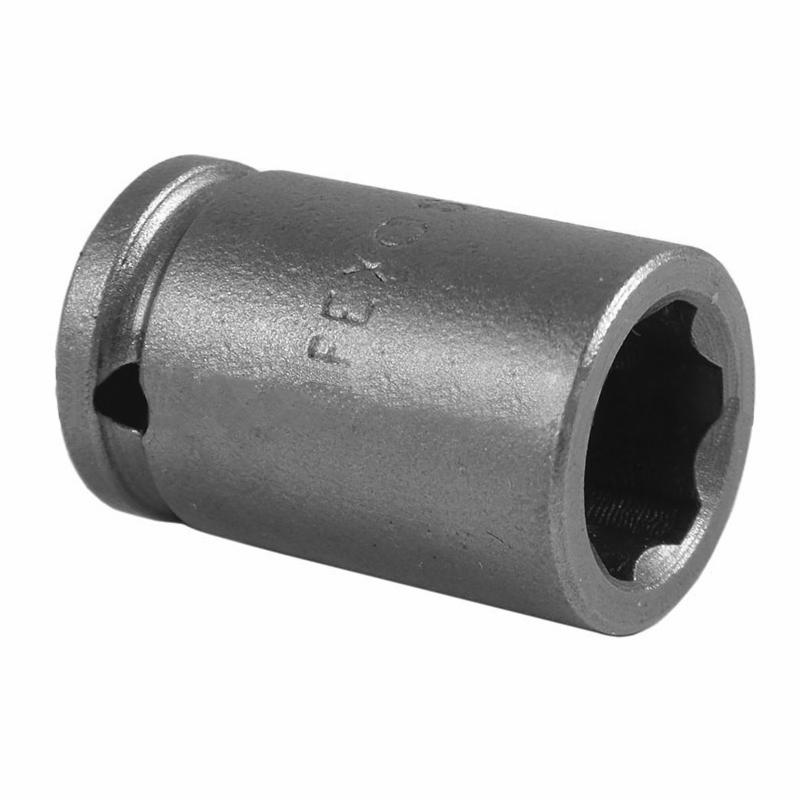

Apex SF-10MM11 Standard Length Socket, Metric, 1/4 in Female Square Drive, 10 mm Socket, 6 Points

Invoice description: Sckt 1/4 Fmale Sq Drv 10 M

UPC: 697099113157
UNSPSC: 27111704
Manufacturer PN: SF-10MM11
$18.32 EA
Factory Order
QTY:


Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 1/4 in Drive, 10 mm Socket, 25.4 mm Overall Length, 6.4 mm Opening Depth, 15.9 mm Drive End Width, 15.9 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width15.9 mm
Drive Size1/4 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth6.4 mm
Overall Length25.4 mm
Socket End Width15.9 mm
Socket Size10 mm
TypeStandard Length

Additional Information

Standards/ApprovalASME B107.111
Country of OriginUS
