Apex APX MB-10MM21

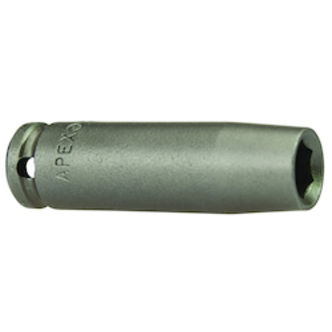

Apex MB-10MM21 Long Length Magnetic Socket, 1/4 in Female Square Drive, 10 mm Hex Socket, 6 Points
Invoice description:
Sckt 1/4 Fmale Sq Drv 10 M
Factory Order
Apex Socket, Long Length Magnetic, Impact Rated: Yes, Measurement System: Metric, Female Square Drive, 1/4 in Drive, Hex Socket, 10 mm Socket, 44.5 mm Overall Length, 6.4 mm Opening Depth, 15.9 mm Drive End Width, 15.9 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated meets or exceeds proof torque requirement for impact standard ASME B107.112
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows Apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
Drive End Width15.9 mm
Drive Size1/4 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth6.4 mm
Overall Length44.5 mm
Socket End Width15.9 mm
Socket Size10 mm
Socket TypeHex
TypeLong Length Magnetic
Additional Information
IncludesSpring Loaded Bolt Clearance Magnet
Standards/ApprovalASME B107.17, B107.112|DIN 475
Country of OriginUS
