Apex APX M-10MM43

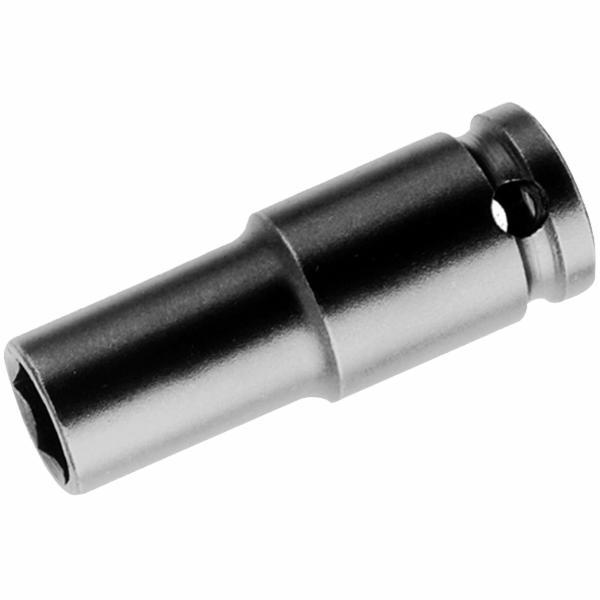

Apex M-10MM43 Magnetic Standard Length Thinwall Socket, Metric, 3/8 in Female Square Drive, 10 mm Socket, 6 Points
Invoice description:
Sckt 3/8 Fmale Sq Drv 10 M
Factory Order
Apex Socket, Magnetic Standard Length Thinwall, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 3/8 in Drive, 10 mm Socket, 31.7 mm Overall Length, 6.4 mm Opening Depth, 19.1 mm Drive End Width, 15.1 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width19.1 mm
Drive Size3/8 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth6.4 mm
Overall Length31.7 mm
Socket End Width15.1 mm
Socket Size10 mm
TypeMagnetic Standard Length Thinwall
Additional Information
Standards/ApprovalASME B107.112
Country of OriginUS
