Apex APX 8MM23-D

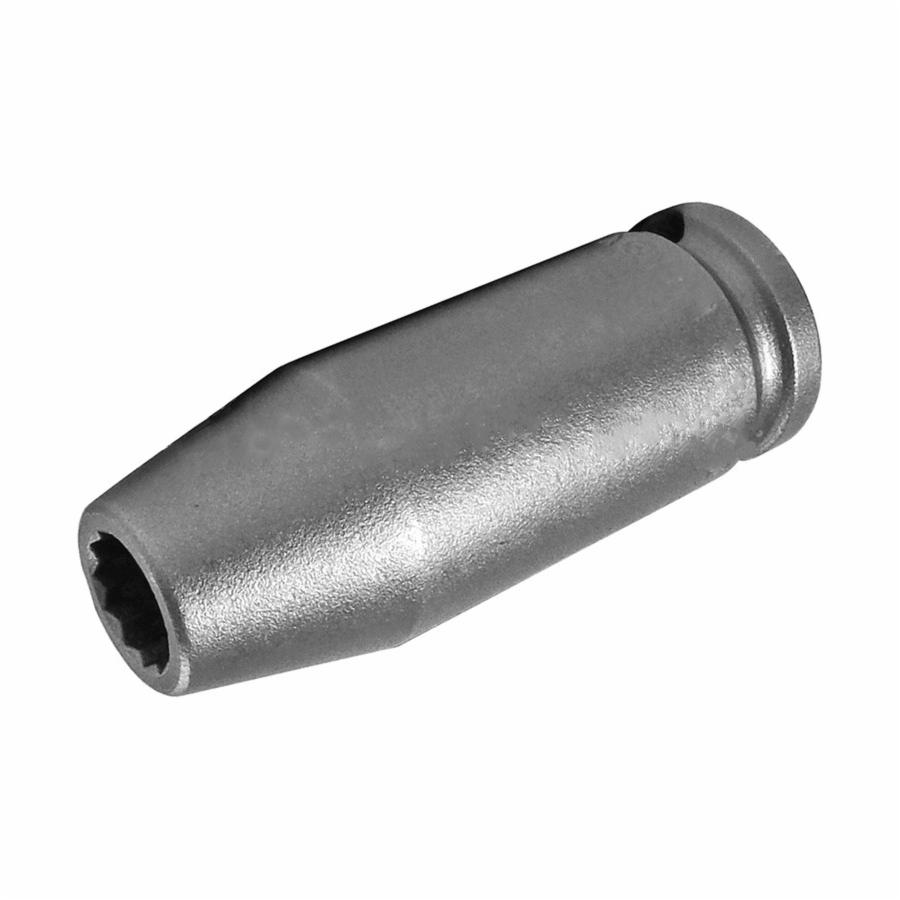

Apex 8MM23-D Extra Long Length Socket, Metric, 3/8 in Double Hex/Female Square Drive, 8 mm Socket, 6 Points

UPC: 697099301424
UNSPSC: 27111704
Manufacturer PN: 8MM23-D
$26.02 EA
Factory Order
QTY:


Apex Socket, Extra Long Length, Yes Impact Rated, Measurement System: Metric, Double Hex/Female Square Drive, 3/8 in Drive, 8 mm Socket, 50.8 mm Overall Length, 4.8 mm Opening Depth, 19.1 mm Drive End Width, 12.7 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width19.1 mm
Drive Size3/8 in
Drive TypeDouble Hex/Female Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth4.8 mm
Overall Length50.8 mm
Socket End Width12.7 mm
Socket Size8 mm
TypeExtra Long Length
