Apex APX 8MM21-D

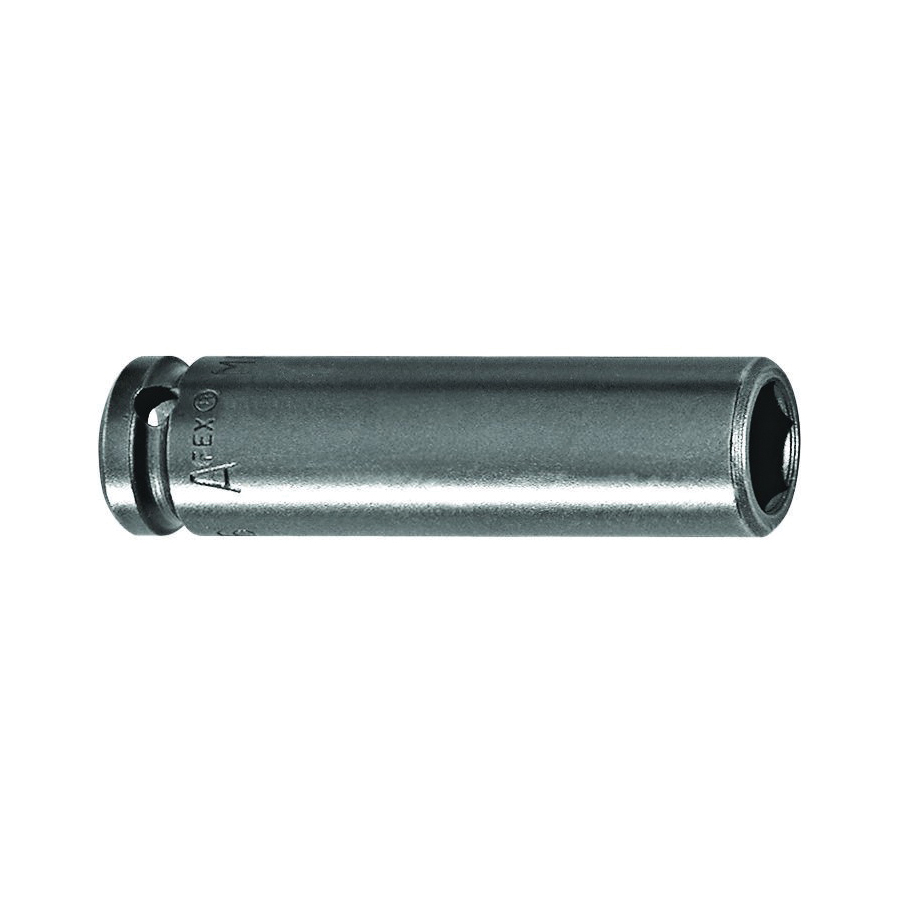

Apex 8MM21-D Long Length Socket, 1/4 in Square Drive, 8 mm, 12 Points

Invoice description: Sckt 1/4 Fmale Sq Drv 8m M

UPC: 697099301400
UNSPSC: 27112828
Manufacturer PN: 8MM21-D
$23.94 EA
Factory Order
QTY:


Apex Socket, Long Length, Series, Yes Impact Rated, Measurement System, Square Drive, Drive Size, in 1/4, Socket Size, mm 8, 44.4 Overall Length, Opening Depth mm, mm 4.8, 12.7 Drive End Width, Socket End Width mm, mm 12.7, Number of Points, Bolt Clearance Depth, High Carbon Alloy Steel, Finish

  • Features

  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows Apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer
  • Impact rated - meets or exceeds proof torque requirement for impact standard

Specifications

Drive End Width12.7 mm
Drive Size1/4 in
Drive TypeSquare
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points12
Opening Depth4.8 mm
Overall Length44.4 mm
Socket End Width12.7 mm
Socket Size8 mm
TypeLong Length

Additional Information

Standards/ApprovalASME B107.111
Country of OriginUS
