Apex APX 7MM13

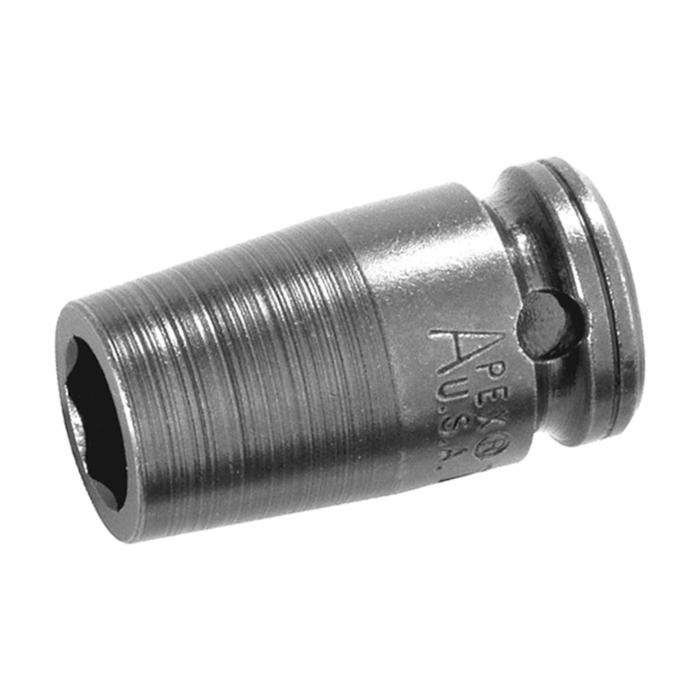

Apex® 7MM13 Standard Length Socket, Metric, 3/8 in Female Square Drive, 7 mm Socket, 6 Points

UPC: 697099296300
UNSPSC: 27111704
Manufacturer PN: 7MM13
$16.36 EA
Factory Order
QTY:


Apex® Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 3/8 in Drive, 7 mm Socket, 31.7 mm Overall Length, 4.8 mm Opening Depth, 19.1 mm Drive End Width, 11.1 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
TypeStandard Length
Impact RatedYes
Measurement SystemMetric
Drive TypeFemale Square
Drive Size3/8 in
Socket Size7 mm
Overall Length31.7 mm
Opening Depth4.8 mm
