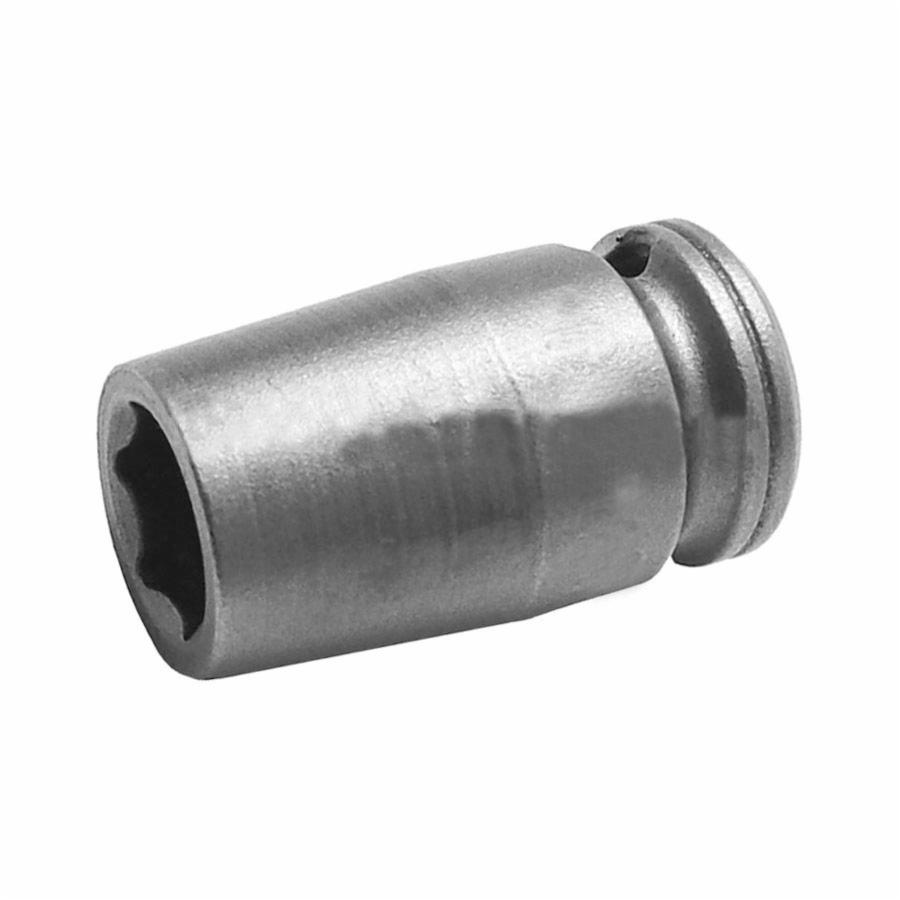

Apex APX 7MM11

Apex 7MM11 Standard Length Socket, Metric, 1/4 in Female Square Drive, 7 mm Socket, 6 Points

Invoice description: Sckt 1/4 Fmale Sq Drv 7m M

UPC: 697099296287
UNSPSC: 27111704
Manufacturer PN: 7MM11
$11.38 EA
Factory Order
QTY:


Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 1/4 in Drive, 7 mm Socket, 22.2 mm Overall Length, 4.8 mm Opening Depth, 12.7 mm Drive End Width, 11.1 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width12.7 mm
Drive Size1/4 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth4.8 mm
Overall Length22.2 mm
Socket End Width11.1 mm
Socket Size7 mm
TypeStandard Length

Additional Information

Standards/ApprovalASME B107.111
Country of OriginUS
