Apex APX 5516

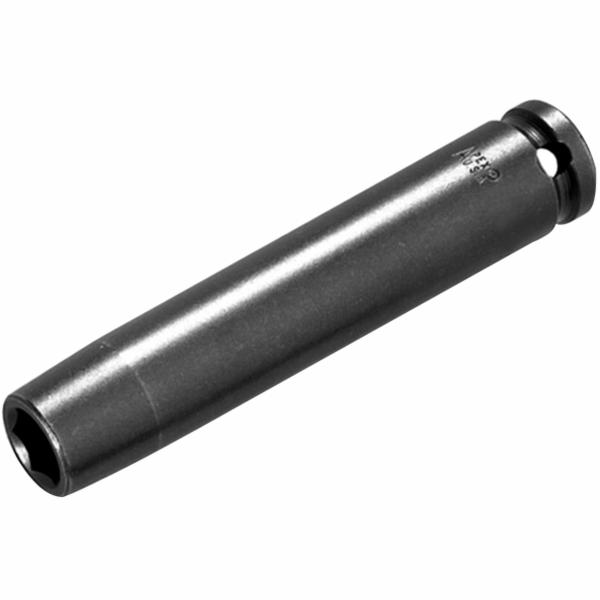

Apex 5516PT Extra Long Length Thinwall Socket, Imperial, 1/2 in Female Square Drive, 1/2 in Socket, 6 Points
Invoice description:
Sckt 1/2 Fmale Sq Drv 1/ 2
Factory Order
Apex Socket, Extra Long Length Thinwall, Yes Impact Rated, Measurement System: Imperial, Female Square Drive, 1/2 in Drive, 1/2 in Socket, 3-1/4 in Overall Length, 11/32 in Opening Depth, 15/16 in Drive End Width, 23/32 in Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width15/16 in
Drive Size1/2 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemImperial
Number of Points6
Opening Depth11/32 in
Overall Length3-1/4 in
Socket End Width23/32 in
Socket Size1/2 in
TypeExtra Long Length Thinwall
Additional Information
Standards/ApprovalASME B107.112
Country of OriginUS
