Apex APX 3609-D

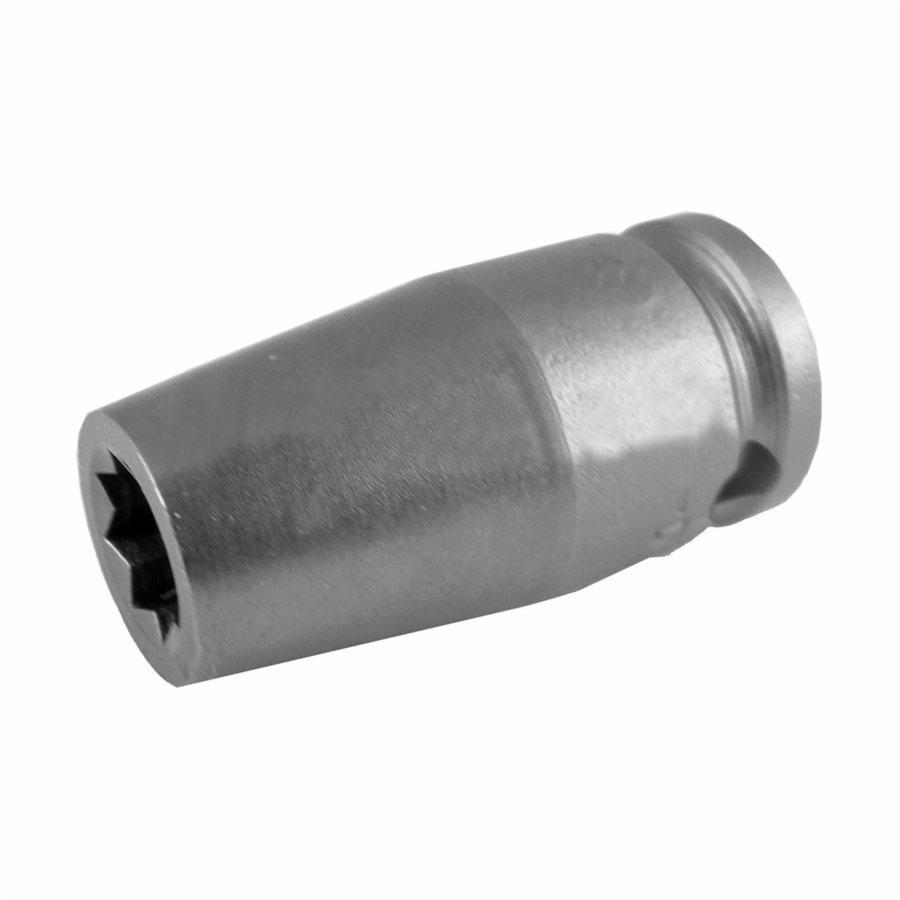

Apex 3609-D Socket, Imperial, 3/8 in Double Square/Female Square Drive, 9/32 in Socket, 12 Points
Invoice description:
Sckt 3/8 Fmale Sq Drv 9/ 3
Factory Order
Apex Socket, Yes Impact Rated, Measurement System: Imperial, Double Square/Female Square Drive, 3/8 in Drive, 9/32 in Socket, 1-1/2 in Overall Length, 3/16 in Opening Depth, 3/4 in Drive End Width, 9/16 in Socket End Width, 12 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width3/4 in
Drive Size3/8 in
Drive TypeDouble Square/Female Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemImperial
Number of Points12
Opening Depth3/16 in
Overall Length1-1/2 in
Socket End Width9/16 in
Socket Size9/32 in
Additional Information
Standards/ApprovalASME B107.112
Country of OriginUS
