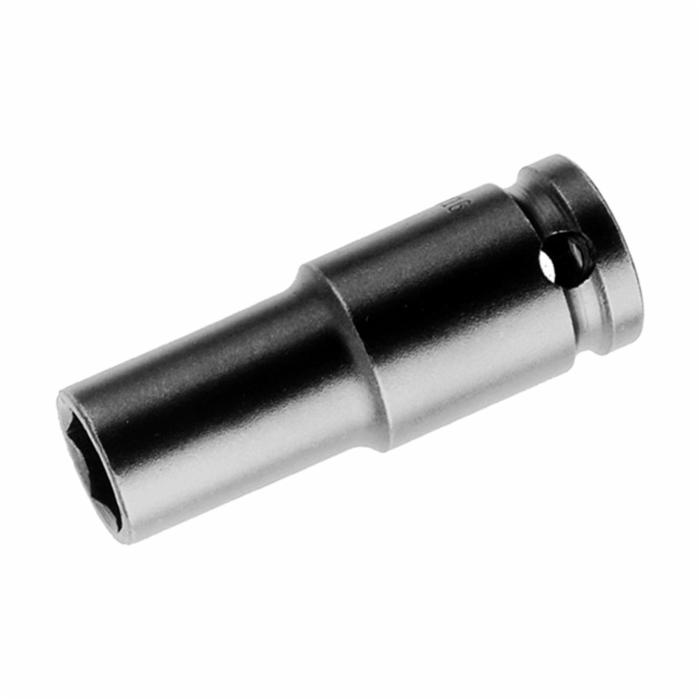

Apex APX 3418-D
Apex 3418-D Standard Length Thinwall Socket, Imperial, 3/8 in Double Hex/Female Square Drive, 9/16 in Socket, 12 Points
Invoice description:
Sckt 3/8 Fmale Sq Drv 9/ 1
Factory Order
Apex Socket, Standard Length Thinwall, Yes Impact Rated, Measurement System: Imperial, Double Hex/Female Square Drive, 3/8 in Drive, 9/16 in Socket, 1-1/2 in Overall Length, 7/16 in Opening Depth, 13/16 in Drive End Width, 25/32 in Socket End Width, 12 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width13/16 in
Drive Size3/8 in
Drive TypeDouble Hex/Female Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemImperial
Number of Points12
Opening Depth7/16 in
Overall Length1-1/2 in
Socket End Width25/32 in
Socket Size9/16 in
TypeStandard Length Thinwall
Additional Information
Standards/ApprovalASME B107.112
Country of OriginUS
