Apex APX 3018

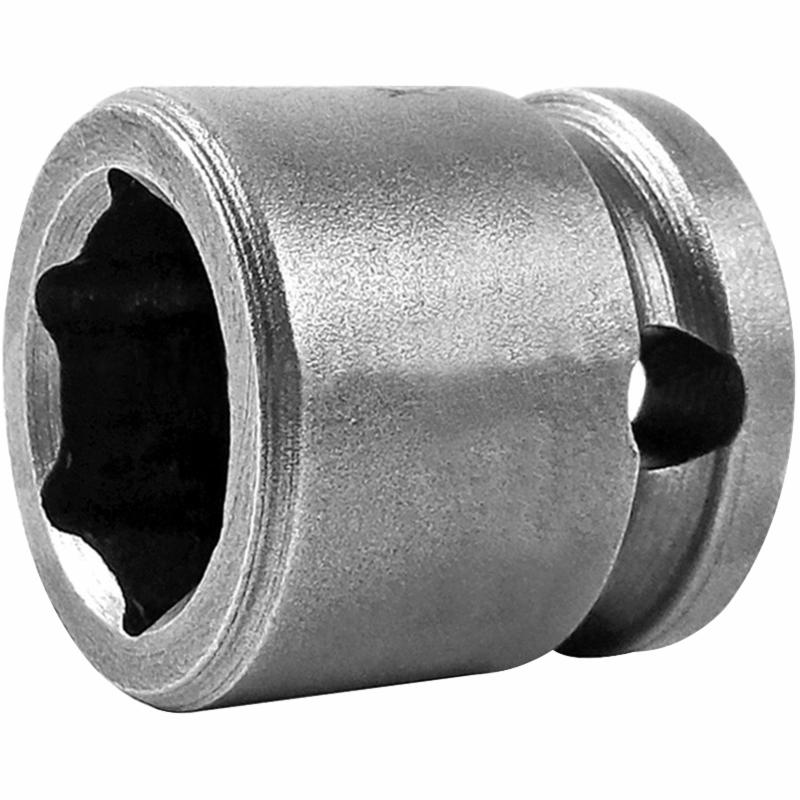

Apex 3018PT Short Length Socket, Imperial, 3/8 in Female Square Drive, 9/16 in Socket, 6 Points

Invoice description: Sckt 3/8 Fmale Sq Drv 9/ 1

UPC: 697099257660
UNSPSC: 27111704
Manufacturer PN: 3018PT
$28.64 EA
Factory Order
QTY:


Apex Socket, Short Length, Yes Impact Rated, Measurement System: Imperial, Female Square Drive, 3/8 in Drive, 9/16 in Socket, 7/8 in Overall Length, 5/16 in Opening Depth, 7/8 in Drive End Width, 7/8 in Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width7/8 in
Drive Size3/8 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemImperial
Number of Points6
Opening Depth5/16 in
Overall Length7/8 in
Socket End Width7/8 in
Socket Size9/16 in
TypeShort Length

Additional Information

Standards/ApprovalASME B107.112
Country of OriginUS
