Apex APX 24MM17

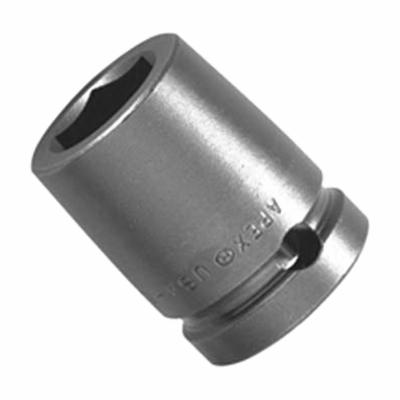

Apex 24MM17 Standard Length Socket, Metric, 3/4 in Female Square Drive, 24 mm Socket, 6 Points
Invoice description:
Sckt 3/4 Sq Dr 24mm Hex
Factory Order
Apex Socket, Standard Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 3/4 in Drive, 24 mm Socket, 51 mm Overall Length, 15.9 mm Opening Depth, 38.1 mm Drive End Width, 38.1 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width38.1 mm
Drive Size3/4 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth15.9 mm
Overall Length51 mm
Socket End Width38.1 mm
Socket Size24 mm
TypeStandard Length
Additional Information
Standards/ApprovalASME B107.113
Country of OriginUS
