Apex APX 18MM35

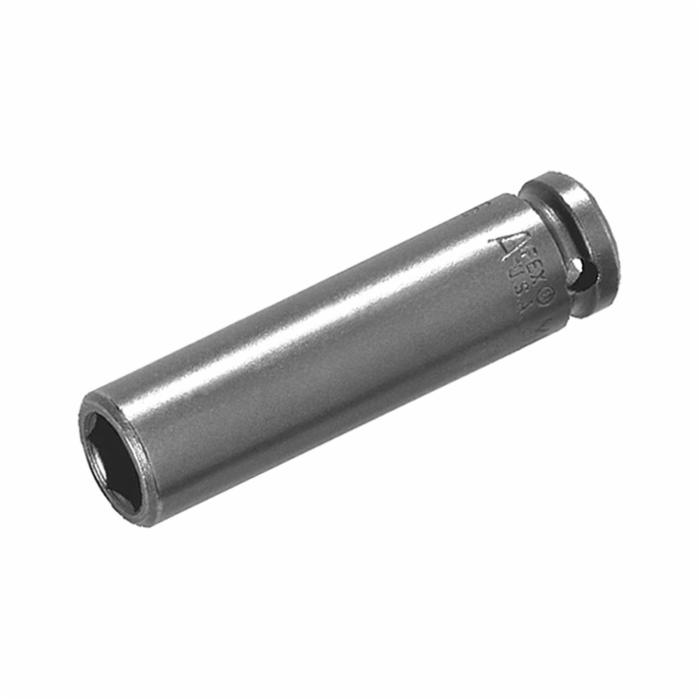

Apex 18MM35 Extra Long Length Thinwall Socket, Metric, 1/2 in Female Square Drive, 18 mm Socket, 6 Points
Invoice description:
Sckt 1/2 Fmale Sq Drv 18 M
Factory Order
Apex Socket, Extra Long Length Thinwall, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 1/2 in Drive, 18 mm Socket, 82.5 mm Overall Length, 11.1 mm Opening Depth, 28.6 mm Drive End Width, 28.6 mm Socket End Width, 6 Points, High Carbon Alloy Steel
Features
- Impact rated
- High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
- Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
- Better and more consistent fit to fasteners leads to better torque transfer
Specifications
ApplicationFor automotive and assembly of appliances
Drive End Width28.6 mm
Drive Size1/2 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth11.1 mm
Overall Length82.5 mm
Socket End Width28.6 mm
Socket Size18 mm
TypeExtra Long Length Thinwall
Additional Information
Standards/ApprovalASME B107.113
Country of OriginUS
