Apex APX 15MM03

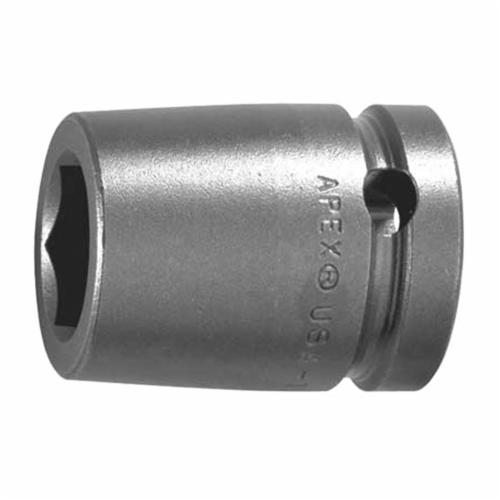

Apex 15MM03 Short Length Socket, Metric, 3/8 in Female Square Drive, 15 mm Socket, 6 Points

Invoice description: Sckt 3/8 Fmale Sq Drv 15 M

UPC: 697099212911
UNSPSC: 27111704
Manufacturer PN: 15MM03
$36.74 EA
Factory Order
QTY:


Apex Socket, Short Length, Yes Impact Rated, Measurement System: Metric, Female Square Drive, 3/8 in Drive, 15 mm Socket, 23.8 mm Overall Length, 9.5 mm Opening Depth, 22.2 mm Drive End Width, 22.2 mm Socket End Width, 6 Points, High Carbon Alloy Steel

  • Features

  • Impact rated
  • High carbon alloy steel and proprietary heat treat process yields greater strength and longer life
  • Cutting edge machining process allows apex to meet or exceed licensor standards, resulting in tighter tolerances and superior product consistency
  • Better and more consistent fit to fasteners leads to better torque transfer

Specifications

ApplicationFor automotive and assembly of appliances
Drive End Width22.2 mm
Drive Size3/8 in
Drive TypeFemale Square
Impact RatedYes
MaterialHigh Carbon Alloy Steel
Measurement SystemMetric
Number of Points6
Opening Depth9.5 mm
Overall Length23.8 mm
Socket End Width22.2 mm
Socket Size15 mm
TypeShort Length

Additional Information

Standards/ApprovalASME B107.112
Country of OriginUS
